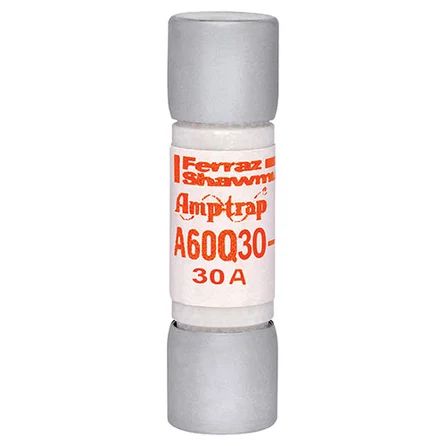

Mersen A60Q30-2 | High Speed Fuse Amp-Trap A60Q 600VAC 600VDC 30A Ferrule
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A60Q30-2 | High Speed Fuse Amp-Trap A60Q 600VAC 600VDC 30A F...
Description
Description
A60Q Amp-Trap Form 101 high speed fuses feature the only 600V AC / DC rating in the industry of similar size (1-1/2" x 13/32") fuses protecting semiconductors. A60Q also has the lowest l2t of all similar fuses and excellent cycling ability. Applications include inverters and small equipment requiring extremely fast response to faults, without the need to carry sustained heavy overloads.
A60Q Amp-trap Form 101 Semiconductor Protection fuses feature the only 600 volt AC/DC rating in the industry of similar size (1-1/2" x13/32") fuses protecting semiconductors. A60Q also has the lowest I2t of all similar fuses and excellent cycling abili ty.
Mersen - A60Q30-2 - Features
- Lowest I2t of any fuse this size for greater protection
- Excellent cycling ability gives advantage in equipment design
- 600V AC / DC rated
- Protection of small inverters and drives, and equipment requiring the highest degree of protection.
Specifications
Specifications
Mersen - A60Q30-2 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A60Q30-2 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A60Q30-2 |
| Item Description | High Speed Fuse Amp-Trap A60Q 600VAC 600VDC 30A Ferrule |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | Amp-Trap A60Q 600VAC 600VDC |
| EAN/UPC Code | 782001948863 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Speed/Characteristic | High Speed |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.3 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 100 EA |
| Sell Pack Weight | 0.9525 kg |
| Sell Pack Width | 130 mm |
| Sell Pack Length | 206.5 mm |
| Sell Pack Height | 41.1 mm |
| Product group | Semiconductor Protection Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0091 kg |
