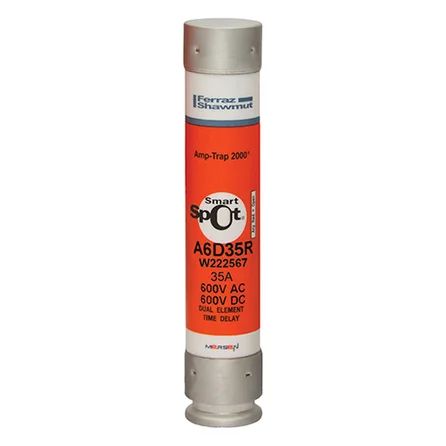

Mersen A6D35R | Fuse A6D-R - Class RK1 - Time-Delay 600VAC 600VDC 35A Ferrule SmartSpot Amp-Trap 2000
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A6D35R | Fuse A6D-R - Class RK1 - Time-Delay 600VAC 600VDC 3...
Description
Description
Amp-Trap 2000 time-delay A6D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A6D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A6D-R fuses can be used to replace older 600V Class H, K or RK5 fuses already installed in the field.
Specifications
Specifications
Mersen - A6D35R - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A6D35R - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A6D35R |
| Item Description | Fuse A6D-R - Class RK1 - Time-Delay 600VAC 600VDC 35A Ferrule SmartSpot Amp-Trap 2000 |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | A6D-R - Class RK1 - Time-Delay |
| EAN/UPC Code | 782001992002 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 35 A |
| AC or DC | AC/DC |
| Fuse Class | Class RK1 |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System | Yes |
| Indication System Type | SmartSpot |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 26.9 mm |
| Product Length | 139.7 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 1.6193 kg |
| Sell Pack Width | 134.9 mm |
| Sell Pack Length | 146 mm |
| Sell Pack Height | 55.9 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.1542 kg |
