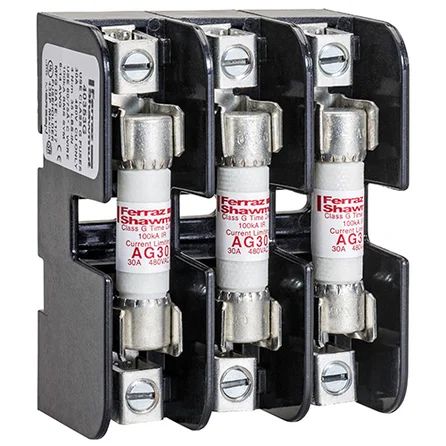

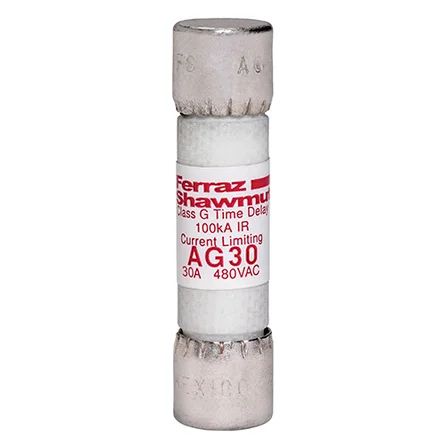

Mersen AG30 | Fuse AG - Class G 480VAC 30A Time Delay Ferrule Amp-Trap
Description
Description
The Mersen Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Class G fuses are made in four physical sizes and provide branch-circuit protection for lighting, heating, and appliance circuits.
The Mersen Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Class G fuses are made in four physical sizes and provide branch-circuit protection for lighting, heating, and appliance circuits.
Mersen - AG30 - Features
- Four unique sizes from 1/2 - 60 amperes do not allow inter-changeability with other fuse classes
- Fiberglass bodies provide dimensional stability in harsh industrial settings
- Current-limiting
- Time-delay (above 5A)
- Amp-Trap AG fuses fit right in to a wide variety of industrial applications such as lighting, heating (except in Canada where fuses must be "P" or "D" type), and appliances.
Specifications
Specifications
Mersen - AG30 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - AG30 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | AG30 |
| Item Description | Fuse AG - Class G 480VAC 30A Time Delay Ferrule Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | AG - Class G |
| EAN/UPC Code | 782001905170 |
| Rated voltage AC UL | 480 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30 A |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Fuse Class | Class G |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.3 mm |
| Product Length | 41.1 mm |
| Sell Pack Quantity | 4 EA |
| Sell Pack Weight | 0.0318 kg |
| Sell Pack Width | 11.2 mm |
| Sell Pack Length | 42.2 mm |
| Sell Pack Height | 42.9 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0077 kg |
