Brand: Mersen | SKU: 635823

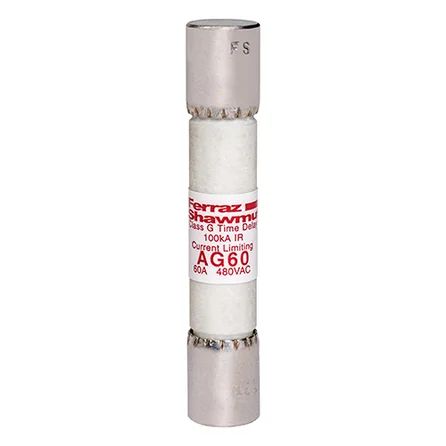

Mersen AG60 | Fuse AG - Class G 480VAC 60A Time Delay Ferrule Amp-Trap

$36.72

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Mersen AG60 | Fuse AG - Class G 480VAC 60A Time Delay Ferrule Amp-Trap

The Mersen Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Class G fuses are made in four physical sizes and provide branch-circuit protection for lighting, heating, and appliance circuits.

Specifications

Mersen - AG60 - Product Categories

Hardware
Tools and Supplies
Supplies

Mersen - AG60 - Specifications

Brand Name	Mersen
Manufacturer Part Number	AG60
Item Description	Fuse AG - Class G 480VAC 60A Time Delay Ferrule Amp-Trap
UNSPSC Code	39121600
Series	AG - Class G
EAN/UPC Code	782001905224
Rated voltage AC UL	480 V
Frequency (Hz)	50/60 Hz
Ampere Rating	60 A
ROHS Compliant	Yes
AC or DC	AC
Fuse Class	Class G
Speed/Characteristic	Time Delay
Mounting	Clip
AC Max I.R./Breaking Capacity: I1	100 kA
Connection/Terminal Material	Tin-Plated Copper
Connection/Terminal Type	Ferrule
Product Diameter	10.3 mm
Product Length	57.2 mm
Sell Pack Quantity	4 EA
Sell Pack Weight	0.0726 kg
Sell Pack Width	11.9 mm
Sell Pack Length	42.7 mm
Sell Pack Height	58.7 mm
Product group	Low Voltage UL/CSA Fuses
Body/Insulating Material	GMG
Product Weight	0.0168 kg

Documents and Downloads

Mersen AG60 Specification Sheet
