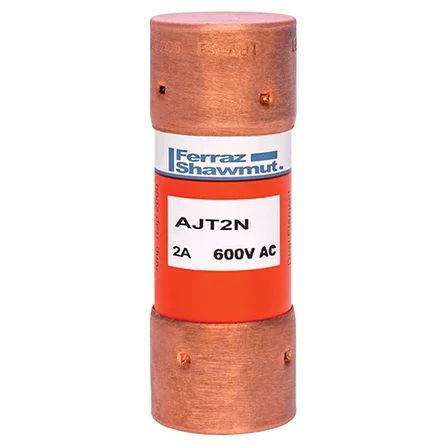

Mersen AJT2N | Fuse AJT - Class J - Time-delay 600VAC 500VDC 2A Fer...
Description
Description

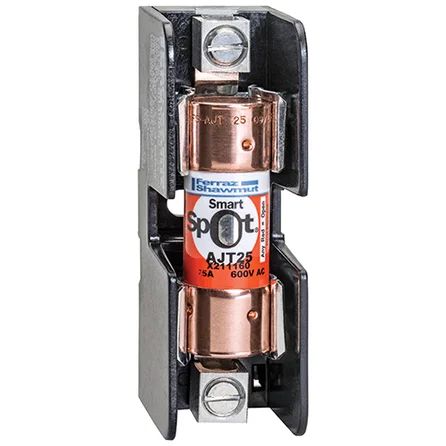

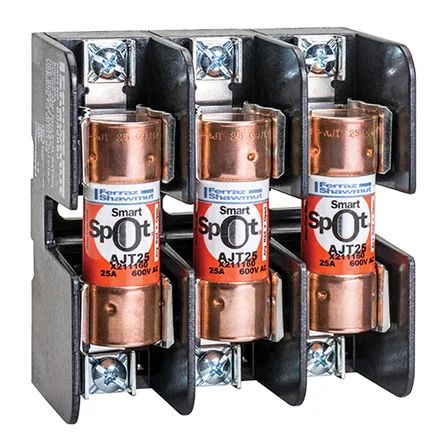

Amp-Trap 2000 AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Amp-Trap 2000 time-delay AJT fuses provide IEC Type "2" (No Damage) protection to main, feeder, and branch-circuits, for all types of loads - yet, they require only half the mounting space needed for 600V UL Class RK fuses. Time-delay characteristics h and
Mersen - AJT2N - Features
- Solid-state SmartSpot indicator
- Time-delay for motor starting and transformer inrush
- 300kA interrupting rating, self-certified (UL witnessed)
- Extremely current-limiting for low peak let-thru current
- Most current-limiting UL class fuse
- Small footprinequ
- Ideal for industrial applications such as: motor circuits, mains, feeders, branch circuits; lighting, heating & general loads, transformers, control panels, circuit breaker back-up, bus duct, and load centers.
Specifications
Specifications
Mersen - AJT2N - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - AJT2N - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | AJT2N |
| Item Description | Fuse AJT - Class J - Time-delay 600VAC 500VDC 2A Ferrule Amp-Trap 2000 |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | AJT - Class J - Time-delay |
| EAN/UPC Code | 782001498016 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 2 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class J |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 20.7 mm |
| Product Length | 57.2 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.4627 kg |
| Sell Pack Width | 60.5 mm |
| Sell Pack Length | 108 mm |
| Sell Pack Height | 42.9 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.044 kg |
