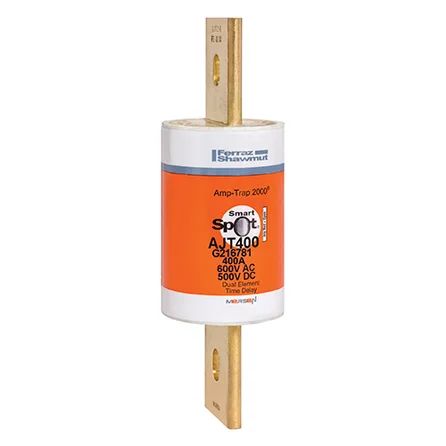

Mersen AJT400 | Fuse AJT - Class J - Time-delay 600VAC 500VDC 400A Blade SmartSpot Amp-Trap 2000
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen AJT400 | Fuse AJT - Class J - Time-delay 600VAC 500VDC 400A ...
Description
Description
Amp-Trap 2000 AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Specifications
Specifications
Mersen - AJT400 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - AJT400 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | AJT400 |
| Item Description | Fuse AJT - Class J - Time-delay 600VAC 500VDC 400A Blade SmartSpot Amp-Trap 2000 |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | AJT - Class J - Time-delay |
| EAN/UPC Code | 782001962203 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 400 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class J |
| Speed/Characteristic | Time Delay |
| Mounting | Clip or Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System | Yes |
| Indication System Type | SmartSpot |
| Connection/Terminal Material | Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 54 mm |
| Product Length | 181.1 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 0.8528 kg |
| Sell Pack Width | 53.8 mm |
| Sell Pack Length | 53.8 mm |
| Sell Pack Height | 184.1 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.8119 kg |
