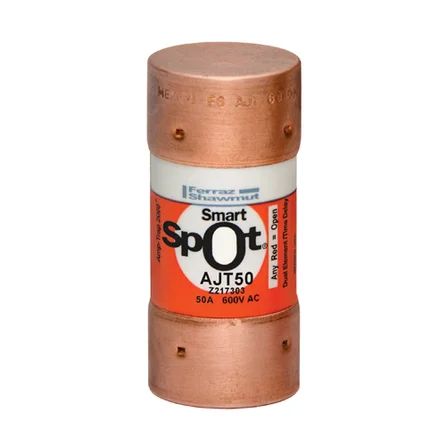

Mersen AJT50 | Fuse AJT - Class J - Time-delay 600VAC 400VDC 50A Fe...
Description
Description
Amp-Trap 2000 AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Specifications
Specifications
Mersen - AJT50 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - AJT50 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | AJT50 |
| Item Description | Fuse AJT - Class J - Time-delay 600VAC 400VDC 50A Ferrule SmartSpot Amp-Trap 2000 |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | AJT - Class J - Time-delay |
| EAN/UPC Code | 782001962364 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 400 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 50 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class J |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System | Yes |
| Indication System Type | SmartSpot |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 27 mm |
| Product Length | 60.5 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.7938 kg |
| Sell Pack Width | 55.6 mm |
| Sell Pack Length | 62 mm |
| Sell Pack Height | 139.7 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0757 kg |
