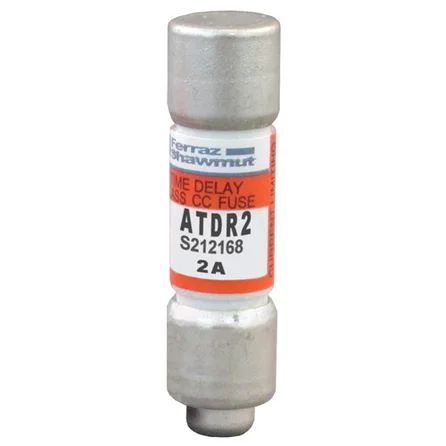

Mersen ATDR2 | Fuse ATDR - Class CC - Time-Delay 600VAC 300VDC 2A Ferrule Amp-Trap 2000
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen ATDR2 | Fuse ATDR - Class CC - Time-Delay 600VAC 300VDC 2A F...
Description
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Amp-Trap 2000 ATDR small-dimension fuses can provide IEC Type 2 No Damage protection to your facility’s increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the be st
Mersen - ATDR2 - Features
- Time-delay for motor starting inrush currents without nuisance opening
- Highly current-limiting for low peak let-thru current
- Improved cycling ability for frequent motor starts/stops without nuisance fuse opening
- Rejection-style design prevents replaceent
- Ideal for small motors, contactors; lighting, heating & general loads, and branch circuit protection.
- Technical Information:
- UL Listed to standard 248-4 File E2137, CSA certified to standard C22.2 No. 248.4, DC listed to UL standard 248.
Specifications
Specifications
Mersen - ATDR2 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - ATDR2 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | ATDR2 |
| Item Description | Fuse ATDR - Class CC - Time-Delay 600VAC 300VDC 2A Ferrule Amp-Trap 2000 |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | ATDR - Class CC - Time-Delay |
| EAN/UPC Code | 782001900946 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 300 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 2 A |
| AC or DC | AC/DC |
| Fuse Class | Class CC |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.4 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.0816 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.1 mm |
| Sell Pack Height | 53.8 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0077 kg |
