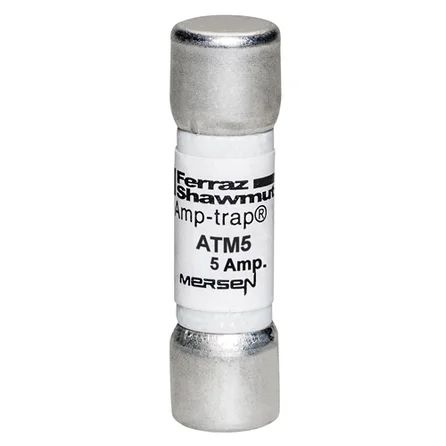

Mersen ATM5 | Fuse ATM - Midget - Fast-Acting 600VAC 600VDC 5A Ferr...
Description
Description
Amp-Trap midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
Specifications
Specifications
Mersen - ATM5 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - ATM5 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | ATM5 |
| Item Description | Fuse ATM - Midget - Fast-Acting 600VAC 600VDC 5A Ferrule Amp-Trap |
| UNSPSC Code | 39121600 |
| Series | ATM - Midget - Fast-Acting |
| EAN/UPC Code | 782001900755 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 5 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Midget |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.3 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.0816 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.1 mm |
| Sell Pack Height | 53.8 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0077 kg |
