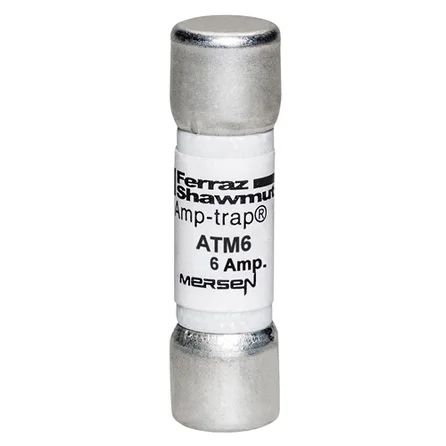

Mersen ATM6 | ATM - Midget, fast-acting low voltage UL/CSA Fuse, 6 Amps, 600V
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen ATM6 | ATM - Midget, fast-acting low voltage UL/CSA Fuse, 6 ...
Description
Description
Amp-Trap midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
Amp-Trap ATM midget fast-acting fuses are rated 600V AC and 600V DC with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offer
Mersen - ATM6 - Features
- For supplemental protection of small motors and transformers
- Extended ratings for special protection of capacitors and circuits with high inrush currents
- 600 V DC ratings for a wide variety of applications photovoltaic and solar applications
- Canused wit
- Supplemental protection of circuits up to 600V AC and 600V DC with 100kA I.R.
Specifications
Specifications
Mersen - ATM6 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - ATM6 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | ATM6 |
| Item Description | Fuse ATM - Midget - Fast-Acting 600VAC 600VDC 6A Ferrule Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | ATM - Midget - Fast-Acting |
| EAN/UPC Code | 782001900762 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 6 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Midget |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.3 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.0816 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.1 mm |
| Sell Pack Height | 53.8 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0077 kg |
