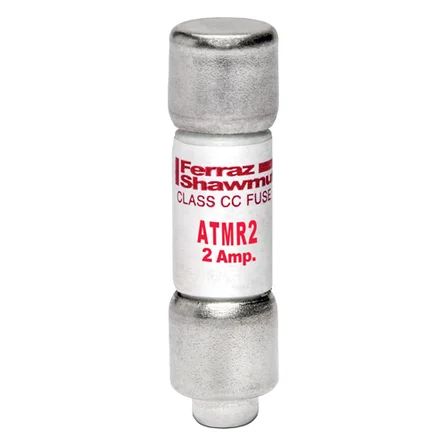

Mersen ATMR2 | Fuse ATMR - Class CC - Fast-Acting 600VAC 600VDC 2A ...
Description
Description
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
Amp-Trap ATMR fuses, in the Class CC family, are the smallest dimension 600 V AC/DC fuses suitable for branch circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where availab le sh
Mersen - ATMR2 - Features
- Rejection style design prevents replacement errors when used with recommended fuse blocks
- Fiberglass body provides dimensional stability in harsh industrial environments
- Versatile design for individual component and branch-circuit protection
- Fast-actig
- V
- Ideal for control circuits, lighting, general loads, and branch circuit protection.
- Technical Information:
- UL Listed to standard 248-4 File E2137, CSA certified to standard C22.2 No. 248.4, DC listed to UL standard 248.
Specifications
Specifications
Mersen - ATMR2 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - ATMR2 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | ATMR2 |
| Item Description | Fuse ATMR - Class CC - Fast-Acting 600VAC 600VDC 2A Ferrule Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | ATMR - Class CC - Fast-Acting |
| EAN/UPC Code | 782001903848 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 2 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class CC |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.4 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.0816 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.1 mm |
| Sell Pack Height | 53.8 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0077 kg |
