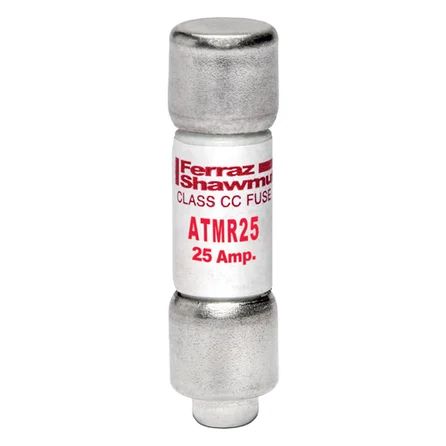

Mersen ATMR25 | Fuse ATMR - Class CC - Fast-Acting 600VAC 600VDC 25A Ferrule Amp-Trap
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen ATMR25 | Fuse ATMR - Class CC - Fast-Acting 600VAC 600VDC 25...
Description
Description
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
Specifications
Specifications
Mersen - ATMR25 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - ATMR25 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | ATMR25 |
| Item Description | Fuse ATMR - Class CC - Fast-Acting 600VAC 600VDC 25A Ferrule Amp-Trap |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | ATMR - Class CC - Fast-Acting |
| EAN/UPC Code | 782001904838 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 25 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class CC |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.4 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.0816 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.1 mm |
| Sell Pack Height | 53.8 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0077 kg |
