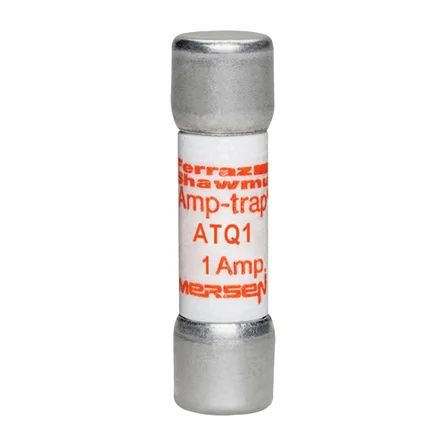

Mersen ATQ1 | Fuse ATQ - Midget - Time-Delay 500VAC 1A Ferrule Amp-...
Description
Description
Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection)
Amp-Trap ATQ midget time-delay fuses are rated 500 V AC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Cir cuit
Mersen - ATQ1 - Features
- Numerous ratings for a wide variety of applications up to 500 V AC
- Time-delay (12 seconds at 200% rating) for circuits with high inrush current

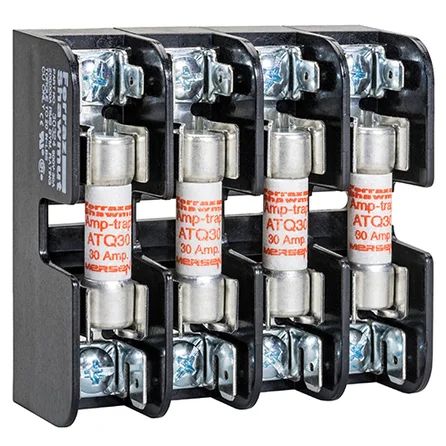

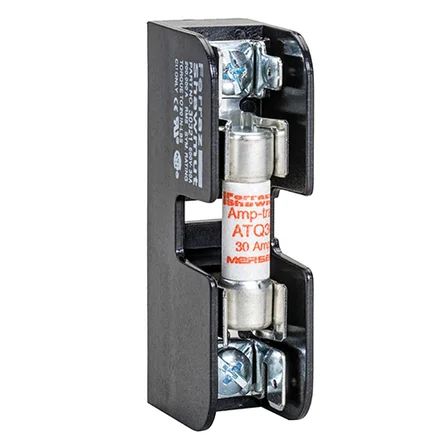

- Can be used with UltraSafe(TM) Fuse holders
- 1 1/2" x 13/32" (10mm x 38mm) dimensions
- Supplemental protection of lighting, solenoid, motor and transformer circuits.
Specifications
Specifications
Mersen - ATQ1 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - ATQ1 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | ATQ1 |
| Item Description | Fuse ATQ - Midget - Time-Delay 500VAC 1A Ferrule Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | ATQ - Midget - Time-Delay |
| EAN/UPC Code | 782001903480 |
| Rated voltage AC UL | 500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 1 A |
| AC or DC | AC |
| Fuse Class | Midget |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.3 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.068 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.1 mm |
| Sell Pack Height | 53.8 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0064 kg |
