Brand: Mersen
|
SKU:
635946

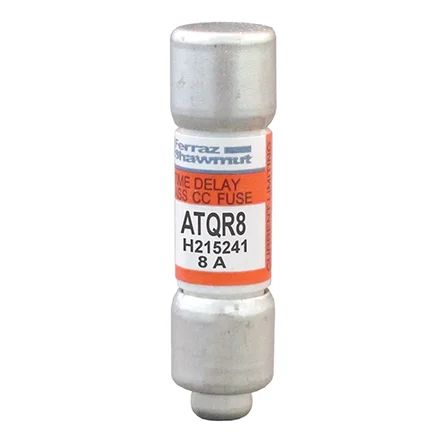

Mersen ATQR8 | Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 8A Ferrule Amp-Trap 2000
Regular price
$29.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen ATQR8 | Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 8A F...
Regular price
$29.85
Unit price
Description
Description
Mersen ATQR8 | Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 8A Ferrule Amp-Trap 2000
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Specifications
Specifications
Mersen - ATQR8 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - ATQR8 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | ATQR8 |
| Item Description | Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 8A Ferrule Amp-Trap 2000 |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | ATQR - Class CC - Time-Delay |
| EAN/UPC Code | 782001906641 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 300 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 8 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class CC |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.4 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.0816 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.1 mm |
| Sell Pack Height | 53.8 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0077 kg |
