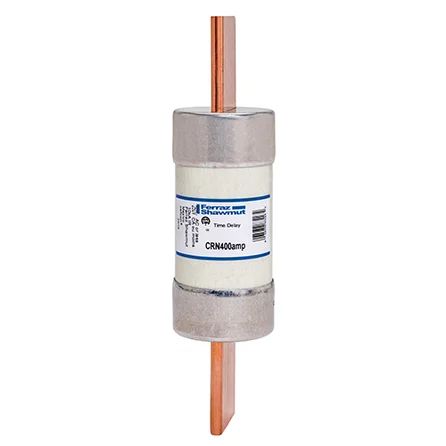

Mersen CRN400 | Fuse CRN - Class H 250VAC 400A Blade
Regular price
$604.49
Unit price
Brand: Mersen
|
SKU:
CRN400
Regular price
$604.49
Unit price
Description
Description
Mersen CRN400 | Fuse CRN - Class H 250VAC 400A Blade
Mersen CRN and CRS fuses are standard fuses, Type D, with 10kA short circuit rating. Type D fuses satisfy the Canadian Electrical Code requirement for low melting-point fuses
Specifications
Specifications
Mersen - CRN400 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - CRN400 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | CRN400 |
| Item Description | Fuse CRN - Class H 250VAC 400A Blade |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | CRN - Class H |
| EAN/UPC Code | 068938834234 |
| Rated voltage AC UL | 250 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 400 A |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Fuse Class | Class H |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 52.4 mm |
| Product Length | 219.2 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 0.6895 kg |
| Sell Pack Width | 53.8 mm |
| Sell Pack Length | 223.8 mm |
| Sell Pack Height | 53.8 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | Paper |
| Product Weight | 0.6577 kg |
