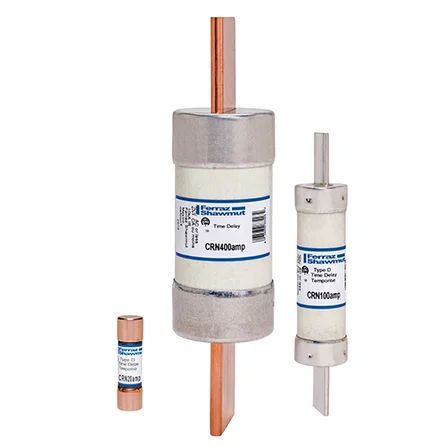

Mersen CRN60 | Fuse CRN - Class H 250VAC 60A Ferrule
Regular price
$49.08
Unit price
Brand: Mersen
|
SKU:
CRN60
Regular price
$49.08
Unit price
Description
Description
Mersen CRN60 | Fuse CRN - Class H 250VAC 60A Ferrule
Mersen CRN and CRS fuses are standard fuses, Type D, with 10kA short circuit rating. Type D fuses satisfy the Canadian Electrical Code requirement for low melting-point fuses
Specifications
Specifications
Mersen - CRN60 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - CRN60 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | CRN60 |
| Item Description | Fuse CRN - Class H 250VAC 60A Ferrule |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | CRN - Class H |
| EAN/UPC Code | 068938834098 |
| Rated voltage AC UL | 250 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 60 A |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Fuse Class | Class H |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 20.6 mm |
| Product Length | 76.2 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.4082 kg |
| Sell Pack Width | 79.2 mm |
| Sell Pack Length | 42.9 mm |
| Sell Pack Height | 108 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | Paper |
| Product Weight | 0.0408 kg |
