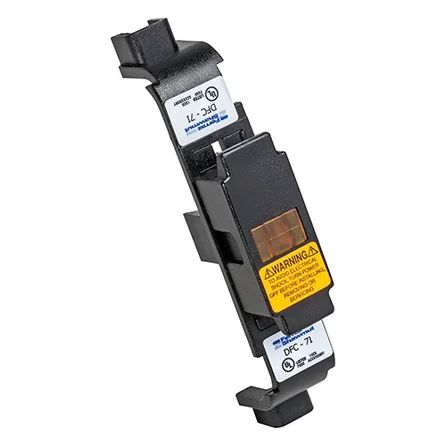

Mersen DFC-7I | Cover DFC Series 600VAC 30A Class CC LED
Description
Description
Mersen DFC dead-front fuse covers snap on to individual fuses installed in fuse blocks, covering exposed live clips and terminals and reducing accidental contact by personnel. They are sized to fit Class G, H, J, K, R, CC or midget fuses for increased safety and (optional) open-fuse indication. All DFC dead-front fuse covers are reusable when a fuse is replaced – simply detach from the open fuse and reattach to the new replacement fuse. On indicator models an orange indicator light will illuminate to indicate an open fuse. DFC fuse cover ends can be easily cut to accommodate existing wiring, safety switches or special installations. A blank label is provided with each DFC to write in circuit or fuse information.
Mersen DFC dead-front fuse covers snap on to individual fuses installed in fuse blocks, covering exposed live clips and terminals and reducing accidental contact by personnel. They are sized to fit class G, H, J, K, R, CC or midget fuses for increased saf
Mersen - DFC-7I - Features
- Innovative design provides dead-front electrical safety to personnel
- Optional orange indicator light shows open fuse
- Many sizes to fit virtually all popular fuses/fuse blocks
- Reusable with no changes or additional cost
- Labels provided for write-in idtif
Specifications
Specifications
Mersen - DFC-7I - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - DFC-7I - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | DFC-7I |
| Item Description | Cover DFC Series 600VAC 30A Class CC LED |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | DFC Series Dead Front Fuse Covers |
| EAN/UPC Code | 782001753795 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Ampere Rating | 30 A |
| Indication System | Yes |
| Indication System Type | LED |
| Number of Poles | 1-Pole |
| Product Width | 17.5 mm |
| Product Length | 94.2 mm |
| Product Height | 34.8 mm |
| Sell Pack Quantity | 3 EA |
| Sell Pack Weight | 0.0429 kg |
| Sell Pack Width | 76.2 mm |
| Sell Pack Length | 101.6 mm |
| Sell Pack Height | 50.8 mm |
| Product group | Covers |
| Product Weight | 0.0136 kg |
