Mersen FESC100 | Fuse FES – HRC-II 600VAC 350VDC 100A Blade FESC
Regular price
$202.55
Unit price
Description
Description
Mersen FESC100 | Fuse FES – HRC-II 600VAC 350VDC 100A Blade FESC

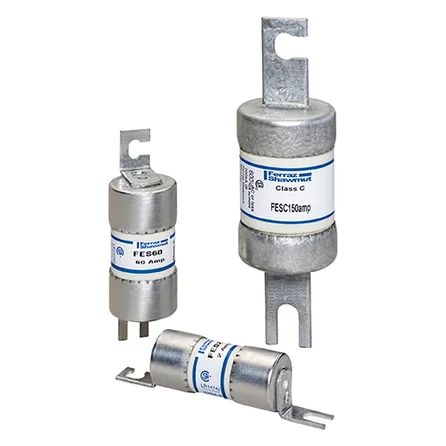

Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay.
Specifications
Specifications
Mersen - FESC100 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - FESC100 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | FESC100 |
| Item Description | Fuse FES – HRC-II 600VAC 350VDC 100A Blade FESC |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | FES – HRC-II Fuses |
| EAN/UPC Code | 068938904142 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 350 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 100 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class C |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 34 mm |
| Product Length | 134.9 mm |
| Sell Pack Quantity | 5 EA |
| Sell Pack Weight | 2.1455 kg |
| Sell Pack Width | 131.8 mm |
| Sell Pack Length | 38.1 mm |
| Sell Pack Height | 195.3 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.4082 kg |
