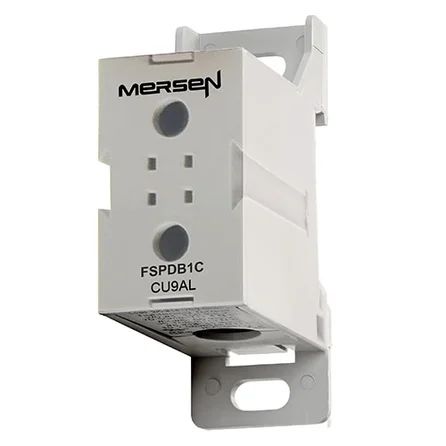

Mersen FSPDB1C | FSPDB Series UL 1059 Finger-Safe Power Distribution Blocks 1500V 175A - 175A 1-Pole 1 - 1 openings; 2/0-#14 --- 2/0-#14
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen FSPDB1C | FSPDB Series UL 1059 Finger-Safe Power Distributio...
Description
Description
FSPDBs introduce a new level of safety and ease for installing power distribution blocks. An IP20 level of finger safe protection is achieved using the FSPDBs and thus eliminates the need for special covers or custom Plexiglas sheets to protect your panels. FSPDBs (sizes 1 to 4) simply snap onto 35mm DIN rail to provide the quickest installation. And since they are modular, you can form any number of poles desired. If multi-pole panel mounting is desired, multiple-pole assembly pins are available. FSPDBs provide a safe, convenient way of splicing cables, splitting primary power into a variety of secondary circuits or providing a fixed junction tap-off point.
Specifications
Specifications
Mersen - FSPDB1C - Product Categories
- Industrial
- Industrial Communication and Control
- Industrial Communication and Control
Mersen - FSPDB1C - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | FSPDB1C |
| Item Description | FSPDB Series UL 1059 Finger-Safe Power Distribution Blocks 1500V 175A - 175A 1-Pole 1 - 1 openings; 2/0-#14 --- 2/0-#14 |
| Type | Terminal Block |
| UNSPSC Code | 39121410 |
| Series | FSPDB Series UL 1059 Finger-Safe Power Distribution Blocks |
| EAN/UPC Code | 782001319595 |
| Rated voltage AC UL | 1500 V |
| Rated voltage DC UL | 1500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating (AL) | 175 A |
| Ampere Rating (CU) | 175 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Short Circuit Rating (Class CC) | 100 kA with 30A Fuse |
| Short Circuit Rating (Class G) | 100 kA with 60A Fuse |
| Short Circuit Rating (Class J) | 100 kA with 200A Fuse |
| Short Circuit Rating (Class L) | Not Tested |
| Short Circuit Rating (Class RK1) | 100 kA with 200A Fuse |
| Short Circuit Rating (Class RK5) | 100 kA with 100A Fuse |
| Short Circuit Rating (Standalone) | 10 kA |
| Short Circuit Rating (Class T) | 100 kA with 200A Fuse |
| Number of Poles | 1-Pole |
| Number of Openings per Pole (Primary) | 1 |
| Number of Openings per Pole (Secondary) | 1 |
| Connector Type (Primary) | Box |
| Connector Type (Secondary) | Box |
| Hole Diameter (Primary) | 0.45 in |
| Hole Diameter (Secondary) | 0.45 in |
| Torque Rating (Primary) | 2/0-#1 100; #2-#6 80; #8-#14 35; |
| Torque Rating (Secondary) | 2/0-#1 100; #2-#6 80; #8-#14 35; ; |
| Wire Range (Primary) | 2/0-#14 |
| Wire Range (Secondary) | 2/0-#14 |
| Installation Mounting | Screw Mount or DIN Rail |
| Product Width | 25.4 mm |
| Product Length | 72.6 mm |
| Product Height | 49.5 mm |
| Sell Pack Quantity | 3 EA |
| Sell Pack Weight | 0.4309 kg |
| Sell Pack Width | 73.2 mm |
| Sell Pack Length | 77.7 mm |
| Sell Pack Height | 50.8 mm |
| Product group | Power Distribution Blocks |
| Body/Insulating Material | Nylon |
| Product Weight | 0.1361 kg |
