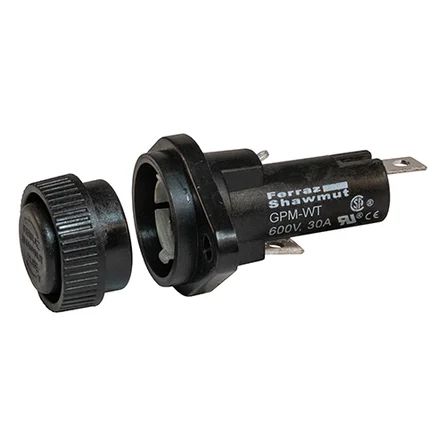

Mersen GPM-WT | Fuse Block 600VAC 600VDC 30A 1/4in Quick Connect / ...
Description
Description
Mersen GPM Panel Mount Fuse Holders are in sizes to accommodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only.
Mersen GPM panel mount fuse holders are in sizes to accommodate Class CC and midget (1-1/2" x 13/32") fuses. All 30A holders have glass-filled thermoplastic insulators for extra dependability and trouble-free installation. Patented design allows same b ody
Specifications
Specifications
Mersen - GPM-WT - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - GPM-WT - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | GPM-WT |
| Item Description | Fuse Block 600VAC 600VDC 30A 1/4in Quick Connect / Solder Water-tight Screw Knob Panel Mount |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | GPM Series |
| EAN/UPC Code | 782001674281 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Fuse Type/Class | Midget |
| Design Details | Water-tight Screw Knob |
| Number of Poles | 1-Pole |
| Fuse Installation Method | Clip-in |
| Max Fuse Rating | 30 A |
| Installation Mounting | Panel Mount |
| Product Width | 28.7 mm |
| Product Length | 61.5 mm |
| Product Height | 28.7 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.3084 kg |
| Sell Pack Width | 54.1 mm |
| Sell Pack Length | 117.6 mm |
| Sell Pack Height | 177.8 mm |
| Product group | Fuse Bases |
| Body/Insulating Material | Thermoplastic |
| Product Weight | 0.0295 kg |
