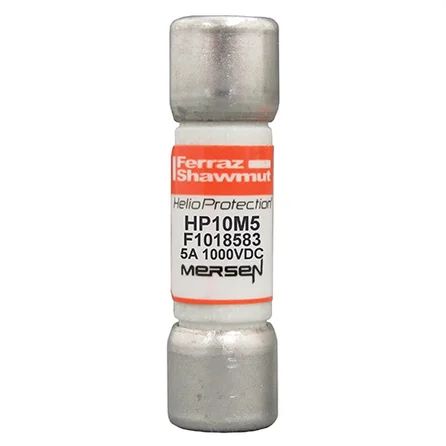

Mersen HP10M5 | Photovoltaic fuse gPV 1000VDC UL 5A With Ferrule For Clip
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen HP10M5 | Photovoltaic fuse gPV 1000VDC UL 5A With Ferrule Fo...
Description
Description
Engineered to protect photovoltaic applications Mersen's HP10M photovoltaic (PV) fuse series was engineered and designed specifically for the protection of photovoltaic systems. Its enhanced fuse construction makes it ideal for constant temperature and current cycling withstand adding to system longevity. The 1000VDC rated HP10M, designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, allows for safe circuit interruption under typical low fault current conditions produced by PV arrays. Protect your off-grid or grid tied PV system from unexpected ground faults and line faults using Mersen's HelioProtection fuse line.
Specifications
Specifications
Mersen - HP10M5 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - HP10M5 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | HP10M5 |
| Item Description | Photovoltaic fuse gPV 1000VDC UL 5A With Ferrule For Clip |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | HelioProtection HP10M Fuses - Photovoltaic |
| EAN/UPC Code | 782001429898 |
| Rated voltage DC UL | 1000 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 5 A |
| ROHS Compliant | Yes |
| AC or DC | DC |
| Fuse Class | Photovoltaic |
| Speed/Characteristic | gPV |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.4 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.0953 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 53.8 mm |
| Sell Pack Height | 41.1 mm |
| Product group | Special Purpose Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0091 kg |
