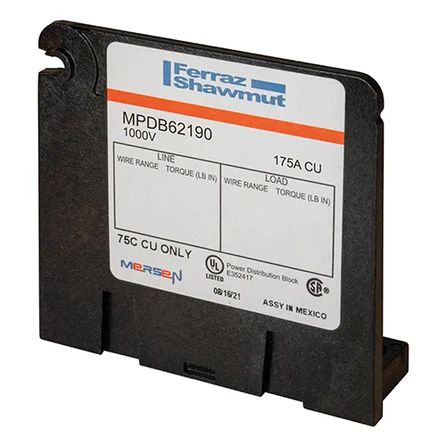

Mersen MPDB62190 | Open-Style PDB UL 1953 1000V Tin-plated Copper - 175A Adder 1 - 2 openings; 2/0-#14 --- #2-#14 Box to Box
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen MPDB62190 | Open-Style PDB UL 1953 1000V Tin-plated Copper -...
Description
Description
The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper.
Specifications
Specifications
Mersen - MPDB62190 - Product Categories
- Industrial
- Industrial Communication and Control
- Industrial Communication and Control
Mersen - MPDB62190 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | MPDB62190 |
| Item Description | Open-Style PDB UL 1953 1000V Tin-plated Copper - 175A Adder 1 - 2 openings; 2/0-#14 --- #2-#14 Box to Box |
| Type | Miscellaneous |
| UNSPSC Code | 39121410 |
| Series | MPDB Series UL 1953 Open-Style Power Distribution Blocks |
| EAN/UPC Code | 782001450731 |
| Rated voltage AC UL | 1000 V |
| Rated voltage DC UL | 1000 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating (CU) | 175 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Short Circuit Rating (Class CC) | 100 kA with 30A Fuse |
| Short Circuit Rating (Class G) | 100 kA with 60A Fuse |
| Short Circuit Rating (Class J) | 100 kA with 100A Fuse |
| Short Circuit Rating (Class L) | 100 kA with 100A Fuse |
| Short Circuit Rating (Class RK1) | 100 kA with 60A Fuse |
| Short Circuit Rating (Class RK5) | 100 kA with 30A Fuse |
| Short Circuit Rating (Standalone) | 10 kA |
| Short Circuit Rating (Class T) | 100 kA with 100A Fuse |
| Number of Poles | Adder |
| Connector Material | Tin-plated Copper |
| Number of Openings per Pole (Primary) | 1 |
| Number of Openings per Pole (Secondary) | 2 |
| Connector Type (Primary) | Box |
| Connector Type (Secondary) | Box |
| Hex/Screw Size & Type (Primary) | 3/8-24 x .56 |
| Hex/Screw Size & Type (Secondary) | 5/16-24 x .38 |
| Hole Diameter (Primary) | 0.44 in |
| Hole Diameter (Secondary) | 0.31 in |
| Torque Rating (Primary) | 2/0-#3 50; #4-#6 45; #8 40; #10-#14 35 |
| Torque Rating (Secondary) | #2-#3 50; #4-#6 35; #8 25; #10-#14 20 |
| Wire Range (Primary) | 2/0-#14 |
| Wire Range (Secondary) | #2-#14 |
| Installation Mounting | Direct Screw Mount |
| Product Width | 23.6 mm |
| Product Length | 78.2 mm |
| Product Height | 71.4 mm |
| Sell Pack Quantity | 6 EA |
| Sell Pack Weight | 0.8845 kg |
| Sell Pack Width | 82.6 mm |
| Sell Pack Length | 177.8 mm |
| Sell Pack Height | 76.2 mm |
| Product group | Power Distribution Blocks |
| Body/Insulating Material | Glass Filled Polycarbonate |
| Product Weight | 0.1406 kg |
