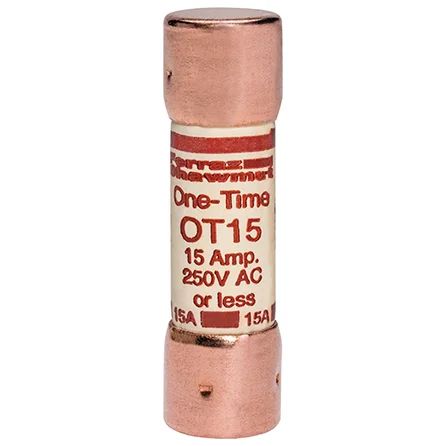

Mersen OT15 | Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 15A Ferrule Amp-Trap
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen OT15 | Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 15A Fe...
Description
Description
One-Time OT and OTN general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings. OT and OTN fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN(15-60) satisfy the Canadian electrical code requirement for Type P low melting-point, non-time-delay fuses.
One-Time OT and OTN general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in a ll
Mersen - OT15 - Features
- Easy to read imprint label for quick recognition and replacement
- Lowest cost protection for circuits serving non-inductive loads
- Versatile
- To be used in feeders, branch circuits, resistive heating, residential and small commercial installations.
Specifications
Specifications
Mersen - OT15 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - OT15 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | OT15 |
| Item Description | Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 15A Ferrule Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | OT - Class K5 - Fast-Acting |
| EAN/UPC Code | 782001700119 |
| Rated voltage AC UL | 250 V |
| Rated voltage DC UL | 250 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 15 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class K5 |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 14.3 mm |
| Product Length | 50.8 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.1361 kg |
| Sell Pack Width | 52.3 mm |
| Sell Pack Length | 76.2 mm |
| Sell Pack Height | 30.2 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | Paper |
| Product Weight | 0.0132 kg |
