Mersen OTM2 | Fuse OTM - Midget - Fast-Acting 250VAC 2A Ferrule Amp...
Regular price
$25.55
Unit price
Brand: Mersen
|
SKU:
OTM2
Regular price
$25.55
Unit price
Description
Description

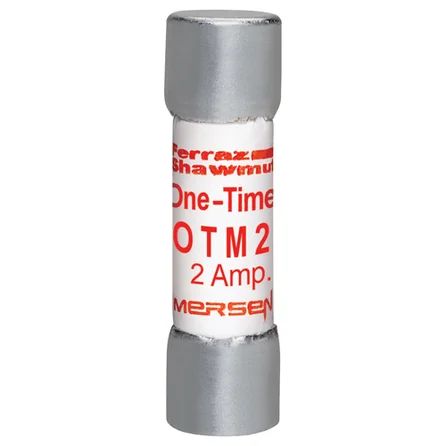

Mersen OTM2 | Fuse OTM - Midget - Fast-Acting 250VAC 2A Ferrule Amp-Trap
One-Time OTM midget fuses provide low-cost protection for 250VAC general purpose lighting, heating, control circuits, etc. where time-delay is not required. (Not for Branch Circuit Protection).
Specifications
Specifications
Mersen - OTM2 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - OTM2 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | OTM2 |
| Item Description | Fuse OTM - Midget - Fast-Acting 250VAC 2A Ferrule Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | OTM - Midget - Fast-Acting |
| EAN/UPC Code | 782001705022 |
| Rated voltage AC UL | 250 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 2 A |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Fuse Class | Midget |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.3 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.059 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.1 mm |
| Sell Pack Height | 53.8 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | Paper |
| Product Weight | 0.0054 kg |
