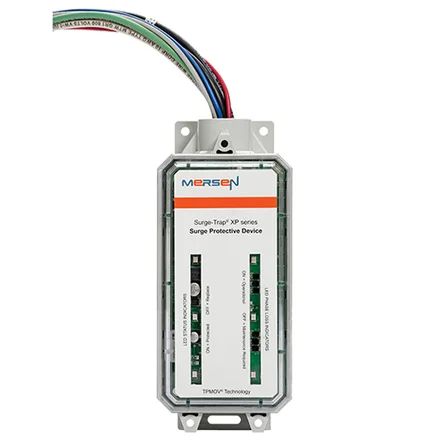

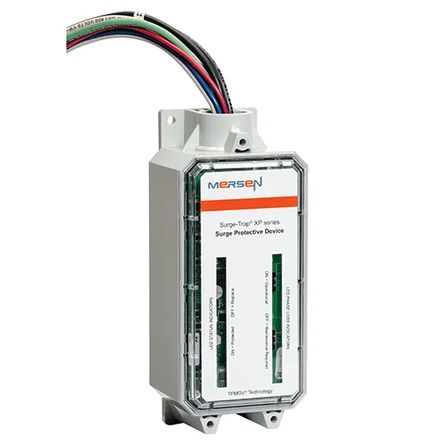

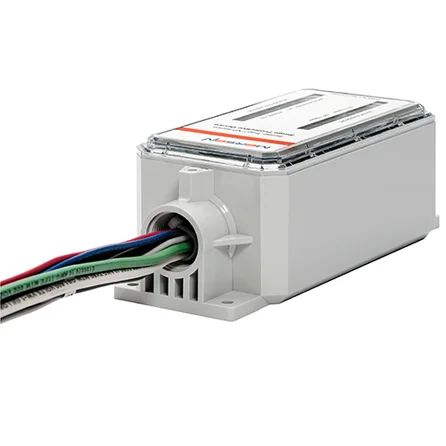

Mersen STXP240S10A | SPD - Type 1 ST-XP Series 240/120V L-L VPR 1000V L-L MCOV 300V 100 kA LED + Rem
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen STXP240S10A | SPD - Type 1 ST-XP Series 240/120V L-L VPR 100...
Description
Description
The Surge-Trap Type 1 STXP Series offers a balance of redundant surge protection in a compact form factor with flexible installation options. Catalog numbers in this series can be panel mounted, side mounted,and have a separate optional flush mount cover. Additionally, the STXP series has options for remote indication and comes standard with LED indication on each phase. The STXP series incorporates TPMOV technology for maximum safety and does not require additional overcurrent protection. Suitable for installation on both the line and load side of a panel, the STXP is ideal for everything from service entrances to machine-specific control panels.
Specifications
Specifications
Mersen - STXP240S10A - Product Categories
- Hardware
- Power Products
- Surge Protection
Mersen - STXP240S10A - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | STXP240S10A |
| Item Description | SPD - Type 1 ST-XP Series 240/120V L-L VPR 1000V L-L MCOV 300V 100 kA LED + Rem |
| Number Of Outlets | Other |
| UNSPSC Code | 39120000 |
| Series | Surge-Trap STXP Series |
| EAN/UPC Code | 782001470555 |
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| UL SPD Type | Type 1 |
| Format | STXP |
| AC or DC | AC |
| Nominal Discharge Current (In) (8/20) | 20 kA |
| System Configuration | Split Phase |
| Indication System | Yes |
| Indication System Type | LED and Remote Audible Alarm |
| Enclosure NEMA Type | 4X Non-Metallic |
| Housing Material | Polycarbonate |
| Installation Mounting | Panel or Wall Mount |
| MCOV L-G | 150 V |
| MCOV L-L | 300 V |
| MCOV N-G | 150 V |
| MCOV L-N | 150 V |
| VPR L-G | 700 V |
| VPR L-L | 1000 V |
| VPR N-G | 500 V |
| VPR L-N | 600 V |
| Product Width | 79.5 mm |
| Product Length | 190.2 mm |
| Product Height | 69.1 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 1.2882 kg |
| Sell Pack Width | 179.3 mm |
| Sell Pack Length | 257 mm |
| Sell Pack Height | 87.4 mm |
| Product group | Power Line SPDs |
| Product Weight | 1.2247 kg |
