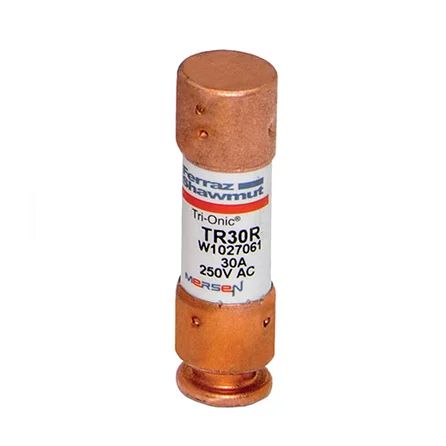

Mersen TR30R | TR-R time-delay Fuse, Class RK5, 30 Amps, 250V
Description
Description
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting curre nts
Mersen - TR30R - Features
- Optional solid-state SmartSpot blown fuse indicator
- Time-delay for motor start-ups and transformer inrush currents without nuisance opening
- Current-limiting for low peak let-thru current
- Rejection-style design prevents replacement errors (when used wih r
- Ideal for motor circuits, mains, feeders, branch circuits, transformers, service entrance equipment, and general-purpose equipment.
Specifications
Specifications
Mersen - TR30R - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - TR30R - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | TR30R |
| Item Description | Fuse TR-R - Class RK5 - Time-Delay 250VAC 160VDC 30A Ferrule Tri-Onic |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | TR-R - Class RK5 - Time-Delay |
| EAN/UPC Code | 782001747862 |
| Rated voltage AC UL | 250 V |
| Rated voltage DC UL | 160 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class RK5 |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 14.3 mm |
| Product Length | 50.8 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.1769 kg |
| Sell Pack Width | 52.3 mm |
| Sell Pack Length | 76.2 mm |
| Sell Pack Height | 30.2 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.0168 kg |
