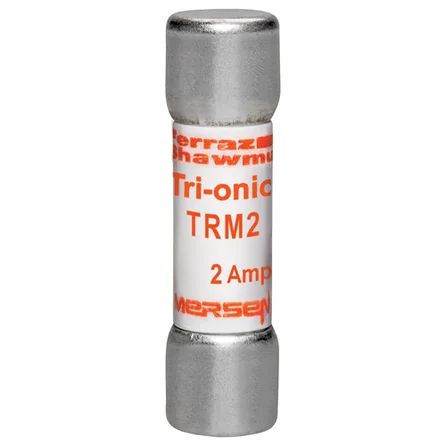

Mersen TRM2 | Fuse TRM - Midget - Time-Delay 250VAC 2A Ferrule Tri-...
Description
Description
Tri-Onic TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Tri-Onic TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush lo
Mersen - TRM2 - Features
- Numerous ratings for a wide variety of applications
- 250 V AC rating in all sizes
- Time-delay for circuits with high inrush current
- Can be used with UltraSafe Fuseholders
- Ideal for small motors, small transformers, lightning circuits, and control circuits.
- Technical Information:
- UL Listed to standard 248-14 File E33925, CSA certified to standard C22.2 No. 248.14.
Specifications
Specifications
Mersen - TRM2 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - TRM2 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | TRM2 |
| Item Description | Fuse TRM - Midget - Time-Delay 250VAC 2A Ferrule Tri-Onic |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | TRM - Midget - Time-Delay |
| EAN/UPC Code | 782001743291 |
| Rated voltage AC UL | 250 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 2 A |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Fuse Class | Midget |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.3 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.0635 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.1 mm |
| Sell Pack Height | 53.8 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0059 kg |
