Brand: Mersen
|
SKU:
TRS2-8/10R

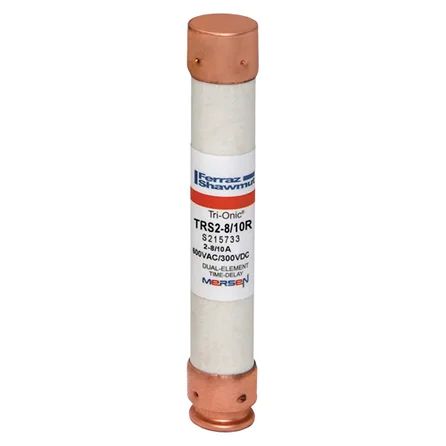

Mersen TRS2-8/10R | Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 2.8A Ferrule Tri-Onic
Regular price
$47.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen TRS2-8/10R | Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600V...
Regular price
$47.61
Unit price
Description
Description
Mersen TRS2-8/10R | Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 2.8A Ferrule Tri-Onic
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Specifications
Specifications
Mersen - TRS2-8/10R - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - TRS2-8/10R - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | TRS2-8/10R |
| Item Description | Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 2.8A Ferrule Tri-Onic |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | TRS-R - Class RK5 - Time-Delay |
| EAN/UPC Code | 782001748678 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 2.8 A |
| AC or DC | AC/DC |
| Fuse Class | Class RK5 |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 20.7 mm |
| Product Length | 127 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.6532 kg |
| Sell Pack Width | 104.6 mm |
| Sell Pack Length | 130 mm |
| Sell Pack Height | 44.4 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.0621 kg |
