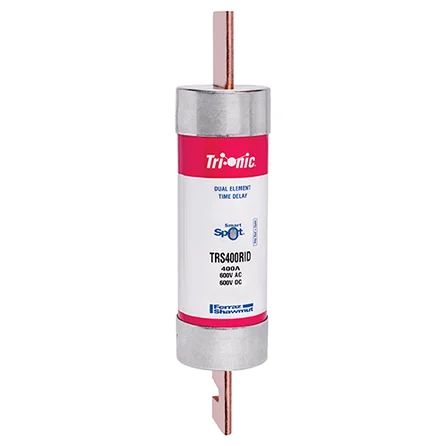

Mersen TRS400RID | Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VD...
Description
Description
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting curre nts
Mersen - TRS400RID - Features
- Optional solid-state SmartSpot blown fuse indicator
- Time-delay for motor start-ups and transformer inrush currents without nuisance opening
- Current-limiting for low peak let-thru current
- Rejection-style design prevents replacement errors (when used wih r
- Ideal for motor circuits, mains, feeders, branch circuits, transformers, service entrance equipment, and general-purpose equipment.
Specifications
Specifications
Mersen - TRS400RID - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - TRS400RID - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | TRS400RID |
| Item Description | Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 400A Blade SmartSpot Tri-Onic |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | TRS-R - Class RK5 - Time-Delay |
| EAN/UPC Code | 782001415273 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 400 A |
| AC or DC | AC/DC |
| Fuse Class | Class RK5 |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System | Yes |
| Indication System Type | SmartSpot |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 65.1 mm |
| Product Length | 295.4 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 1.4969 kg |
| Sell Pack Width | 66.5 mm |
| Sell Pack Length | 66.5 mm |
| Sell Pack Height | 298.4 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | PolyTube |
| Product Weight | 1.4243 kg |
