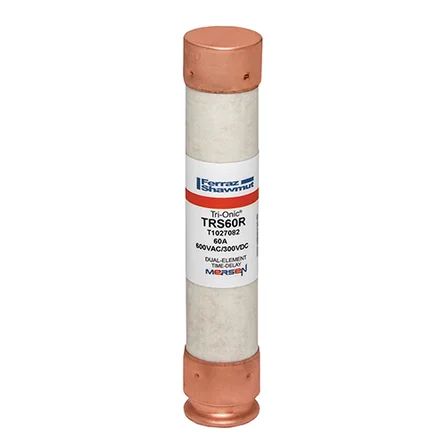

Mersen TRS60R | TRS-R time-delay Fuse, Class RK5, 60 Amps, 600V
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen TRS60R | TRS-R time-delay Fuse, Class RK5, 60 Amps, 600V
Description
Description
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting curre nts
Mersen - TRS60R - Features
- Optional solid-state SmartSpot blown fuse indicator
- Time-delay for motor start-ups and transformer inrush currents without nuisance opening
- Current-limiting for low peak let-thru current
- Rejection-style design prevents replacement errors (when used wih r
- Ideal for motor circuits, mains, feeders, branch circuits, transformers, service entrance equipment, and general-purpose equipment.
Specifications
Specifications
Mersen - TRS60R - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - TRS60R - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | TRS60R |
| Item Description | Fuse TRS-R - Class RK5 - Time-Delay 600VAC 300VDC 60A Ferrule Tri-Onic |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | TRS-R - Class RK5 - Time-Delay |
| EAN/UPC Code | 782001749040 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 300 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 60 A |
| AC or DC | AC/DC |
| Fuse Class | Class RK5 |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 27 mm |
| Product Length | 139.7 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 1.5195 kg |
| Sell Pack Width | 134.9 mm |
| Sell Pack Length | 146 mm |
| Sell Pack Height | 53.3 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.1447 kg |
