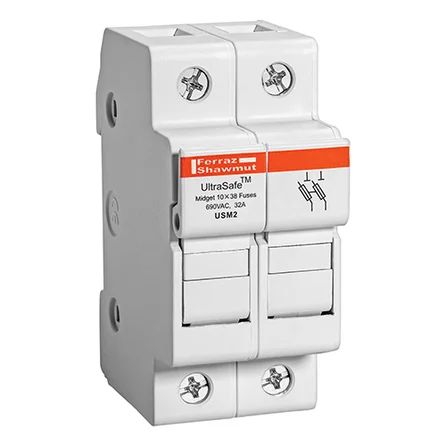

Mersen USM2 | Fuse Holder UltraSafe™ 800VAC 1000VDC Midget 30A 2-Pole Pressure Plate IP20
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen USM2 | Fuse Holder UltraSafe™ 800VAC 1000VDC Midget 30A 2-Po...
Description
Description
Mersen USM Series UltraSafe Modular Fuse holders introduce a new level of safety for Midget 1-1/2" x 13/32" AC and DC-rated fuses up to 30 amperes. UltraSafe holders qualify as “Finger-safe” under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multipole units can also be field assembled by ordering pin-tie handles.UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe body material is tough and durable polyamide, with exceptional insulating properties.
Mersen UltraSafe modular fuseholders introduce a new level of safety for class CC and midget fuses up to 30 amperes. UltraSafe fuseholders qualify as "finger safe" under IEC and DIN standards to an IP20 grade of protection, including fuse changing (wit h t
Mersen - USM2 - Features
- IP20 Finger-Safe
- Optional visual blown fuse indication
- DIN-rail mounting
- Compact footprint
- Quick, tool-free, easy fuse change outs
- For all circuits up to 600 volts for motors, control circuits, transformers, etc? and for DC circuits up to 1000 V DC including photovoltaic applications.
Specifications
Specifications
Mersen - USM2 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - USM2 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | USM2 |
| Item Description | Fuse Holder UltraSafe™ 800VAC 1000VDC Midget 30A 2-Pole Pressure Plate IP20 |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | UltraSafe™ USM - Midget Fuse Holders |
| EAN/UPC Code | 782001829988 |
| Rated voltage AC UL | 800 V |
| Rated voltage DC UL | 1000 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Midget |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Fuse Type/Class | Midget |
| Number of Poles | 2-Pole |
| Wiring range | #6 to #14 Solid or Stranded |
| Fuse Installation Method | Clip-in |
| Torque Rating | 1.695 N m |
| Max Fuse Rating | 30 A |
| Installation Mounting | DIN Rail |
| Product Width | 35.1 mm |
| Product Length | 78 mm |
| Product Height | 58.9 mm |
| Sell Pack Quantity | 6 EA |
| Sell Pack Weight | 0.7983 kg |
| Sell Pack Width | 88.9 mm |
| Sell Pack Length | 215.9 mm |
| Sell Pack Height | 67.6 mm |
| Product group | Fuse Holders |
| Body/Insulating Material | Polyamide |
| Product Weight | 0.127 kg |
