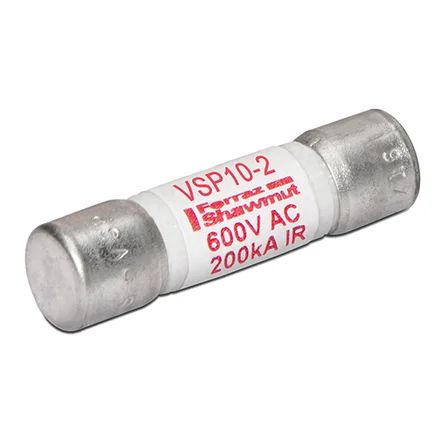

Mersen VSP10-2 | VSP MOV Fuses 600VAC Surge Capacity: 10kA Ferrule
Description
Description
Mersen surge suppression fuses are specially designed to address the protection of SPD systems. Our surge suppression fuses have been specially designed to withstand 8/20 ?Sec surge pulses without opening, allowing the SPD system to react to the surge. All surge suppression fuses have a 8/20 ?Sec surge rating, not a continuous current rating. Under AC short circuit conditions these surge suppression fuses are very current limiting.
Mersen’s surge suppression fuses are specially designed to address the protection of Surge Protective Devices (SPD). The surge suppression fuses have been specially designed to withstand 8x20 MicroSec surge pulses without opening, allowing the SPD to r eac
Mersen - VSP10-2 - Features
- VSP fuses rated 600 V AC, 200kA I.R.
- Surge ratings of 5-100kA 8 x 20 uSec capacity
- Various mounting configurations ferrules, blade, bolt-in, pc board mount
- For protection of surge protection devices (SPD) and coordination with other protection devices.
Specifications
Specifications
Mersen - VSP10-2 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - VSP10-2 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | VSP10-2 |
| Item Description | VSP MOV Fuses 600VAC Surge Capacity: 10kA Ferrule |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | VSP MOV Fuses |
| EAN/UPC Code | 782001904500 |
| Rated voltage AC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Design Details | 10kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.4 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.0953 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.1 mm |
| Sell Pack Height | 53.8 mm |
| Product group | Special Purpose Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0091 kg |
