Description

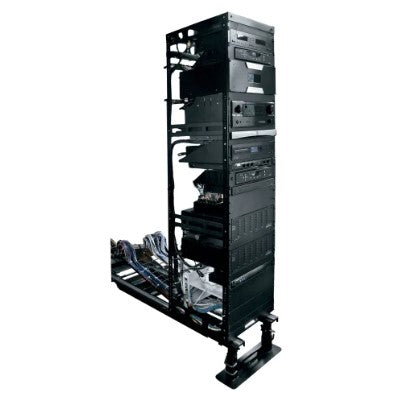

Middle Atlantic AX-SX-16 | AXS Series Rack, AX-SX-16, 20" D X 28" H

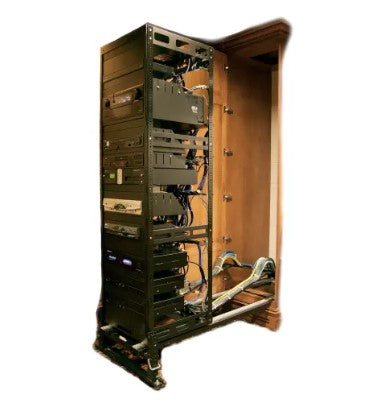

Specify an AXS when installing audio and video equipment flush into a wall or cabinet; ideal for larger systems. The patented pull-out design provides access to rear equipment connections. Entire bays of equipment can be rolled out for service and installation flexibility.

Middle Atlantic - AX-SX-16 - Features

Unique interlocking corner joint for exceptional strength and easy assembly
Service stand raises service tracks to bottom of AXS, allowing it to pull out
Service tracks include built-in level to save time
Removable rack frame can be integrated off-site to save time
Articulating cable carriers provide effective cable management (non-rotating models only)
Standard fixed front and rear 10-32 threaded rackrail with numbered spaces
Service tracks and stands sold separately

Specifications

Middle Atlantic - AX-SX-16 - Specifications

Depth	20 in (50.8 cm)
Extension Length	25 in (63.5 cm)
Height	32.69 in (83 cm)
Primary Package Weight	56 lbs (25.4 kg)
Rack Units	16 RU
Usable Depth	20 in (50.8 cm)
Usable Height	28 in (71.1 cm)
Weight Capacity	650 lbs (294.8 kg)
Width	19.25 in (48.9 cm)
Finish	Black Powder Coat
Rack Rail Type	10-32
Material	Steel
Seismic Rating	No
Type	Wall-Mount
UNSPSC Code	24102001
Type	Wall-Mount
UNSPSC Code	24102001
