Brand: Middle Atlantic Products
|
SKU:
275161

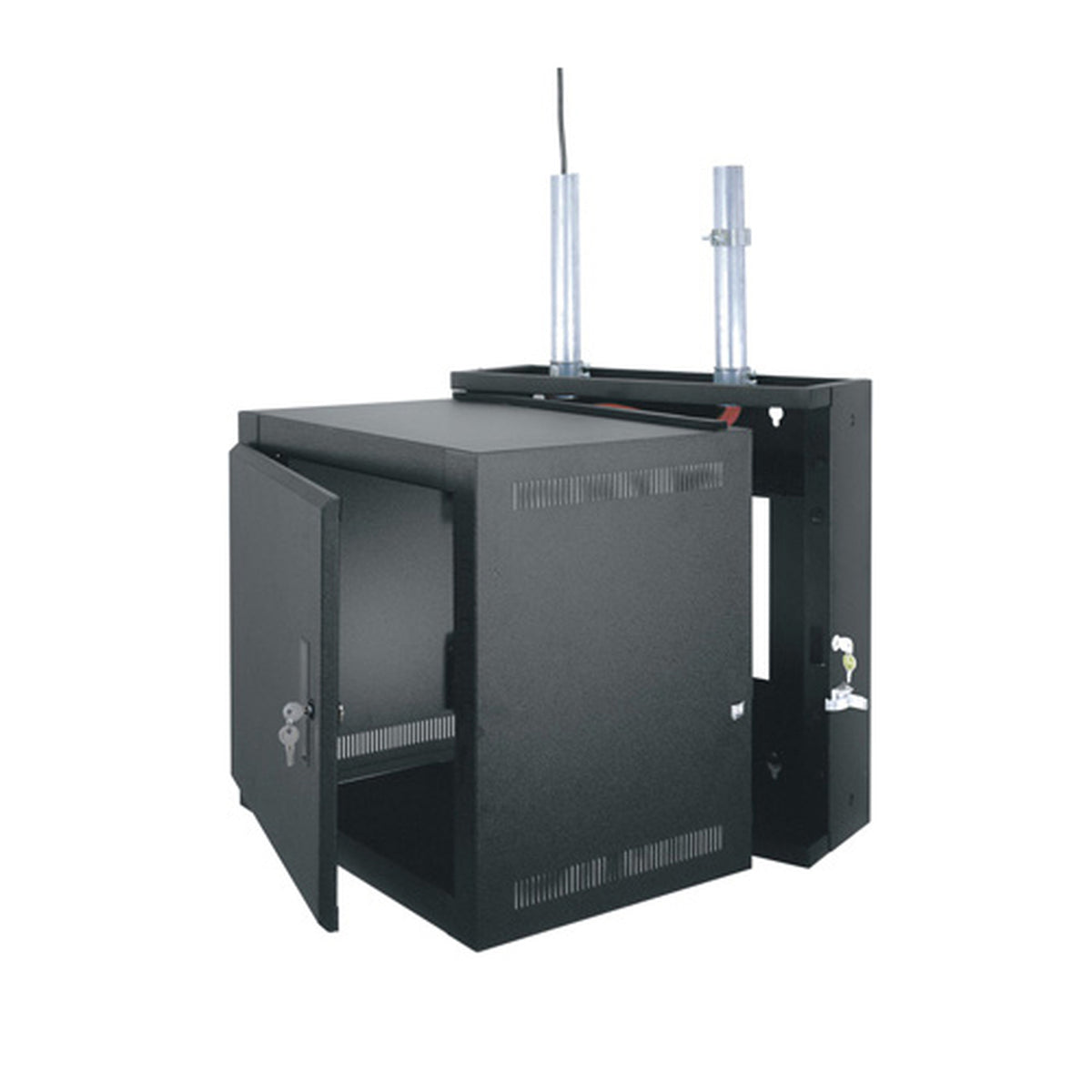

Middle Atlantic EWR1022SD | EWR Series Rack, 22" D X 24 1/2" H, with Solid Door
Regular price
$706.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Middle Atlantic EWR1022SD | EWR Series Rack, 22" D X 24 1/2&qu...
Regular price
$706.72
Unit price
Brand: Middle Atlantic Products
|
SKU:
275161
Regular price
$706.72
Unit price
Shipping calculated at checkout.
Description
Description
10u 20"D Swinging Wall Mount Rack with Solid Door. An economical solution for smaller systems, this pivoting, sectional wall cabinet provides unparalleled quality at an aggressive price and is ideal for use in both secured and unsecured areas. Fully welded for additional strength, this quick-mounting swinging wall rack provides excellent versatility for the price. The swing is completely reversable and optimized for passive thermal management.
Main Features
- Fully Welded Construction for Strength
- Patented Tool Free Quick-Mount System for Center Section Mounting
- Center Section Swing is Reversible and Can be Both Keylocked and Padlocked
- Center Section is Keyed Differently from Optional Front Door for Securiy
- Optimized for Passive Thermal Management
- Fully Assembled with Solid Front Door
Specifications
Specifications
Specification
| Rack Units (Size U) | 10 |
|---|---|
| Thread Type | 10-32 Tapped |
| Usable Depth (Inches) | 20 |
| Door Style | Solid |
| Weight Capacity | 150 |
| External Width (Inches) | 23.375 |
| External Height (Inches) | 24.5 |
| External Depth (Inches) | 23.25 |
| Internal Width (Inches) | 19.00 (EIA Compliant) |
| Includes | 1 Set of Rails |
| Color | Textured Black Powder Coat |
| Material | Steel |
| Country of Origin | Made in USA |
| Warranty | Lifetime |
| Certifications | RoHS, Greenguard, CSA, UL Listed |
| Manufacturer | Middle Atlantic |
| Airflow | FRONT-TO-REAR |
| Color | BLACK |
| Multi-compartment | NO |
| Material | STEEL |
| Nema Rating | NO |
| Model | MIXED USE |
| Seismic Rating | NO |
| Mounting Width | 19" |
| Type | WALL-MOUNT |
| Rail Style | TAPPED |
| Overall Depth | GREATER THAN 1’ TO 2’ |
| Overall Height | GREATER THAN 2’ TO 3’ |
| Overall Width | GREATER THAN 1’ TO 2’ |
| Rack Units | 10U |
| UNSPSC Code | 24102001 |
