Brand: Middle Atlantic Products | SKU: 354192

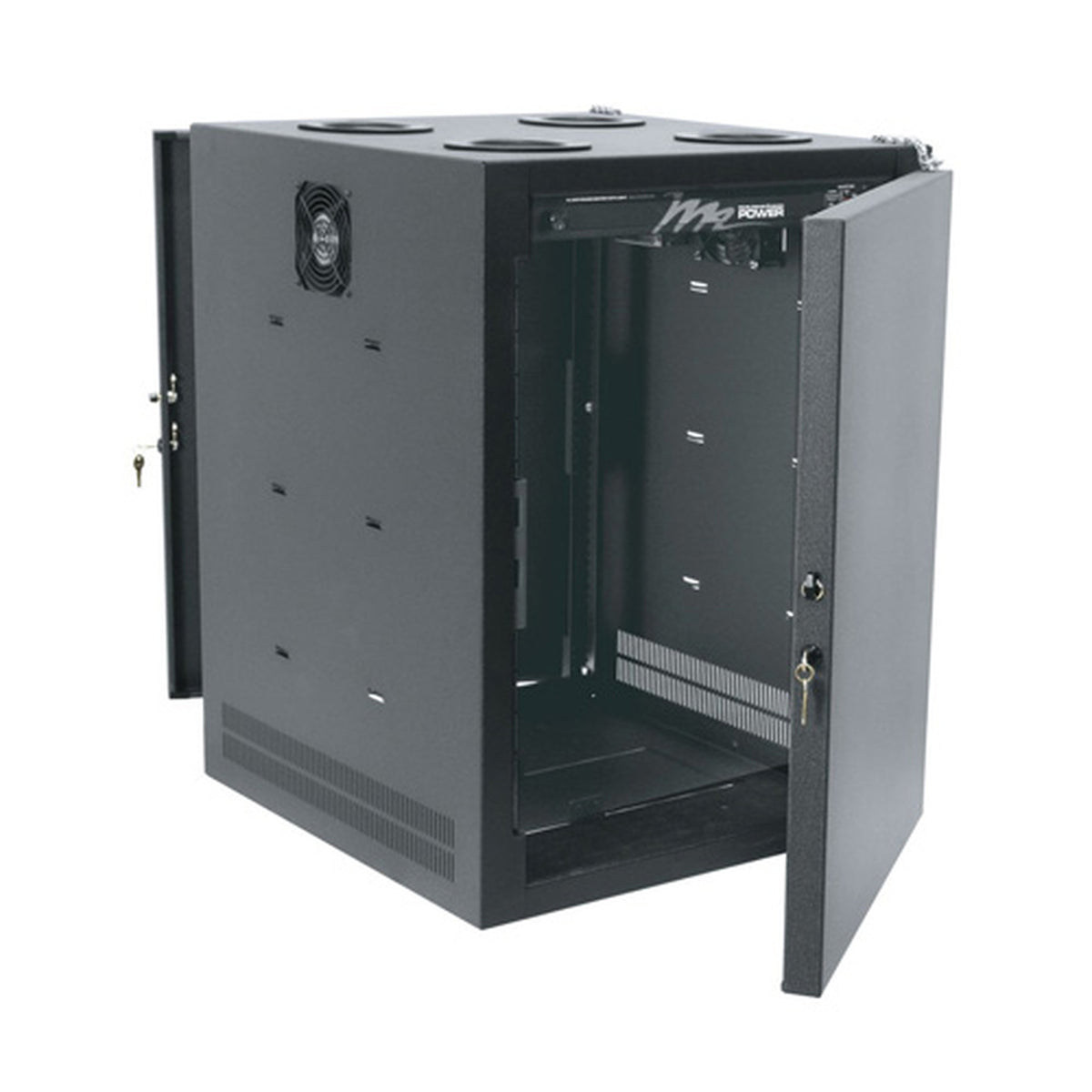

Middle Atlantic IDF-TM-1224BK | IDF Series Rack, IDF-TM-1224BK, 28 3/4" D X 24-1/8" H

Regular price $1,462.27
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Mounts to building truss or Unistrut beam using 2 threaded rods (installer supplied), or directly to Unistrut beam; Included safety lanyard ensures a secure installation; Removable 16-gauge aluminum plate allows bottom mounting of wireless antennae, dome cameras, etc.; Standard solid front and rear locking and latched doors install with safety chains and lift-off stops to prevent accidental removal; Electrical box pre-installed inside the enclosure; Standard front and rear adjustable 11-gauge, 10-32 threaded rackrail with numbered rackspace increments; Finished in a durable black textured powder coat; Two 4-1/2 exhaust fans remove heated air at the top of the enclosure. Passive lower air intakes allow cooler air to be pulled in from the bottom.; Rack top includes four integral gland grommeted 4 cable pass-throughs; Multiple UHF/VHF antenna knockouts on the bottom of the enclosure

12u Distribution Rack. Choose the IDF when rackmounting hubs, routers and other equipment overhead in warehouses, retail outlets or any larger, open location. Mounts to building truss or Unistrut beams using 1/2” threaded rod, or directly to Unistrut beams. Includes safety lanyard. A great solution for distributed systems.

Main Features

  • Mounts to building truss or Unistrut beam using 2 threaded rods (installer supplied), or directly to Unistrut beam
  • Included safety lanyard ensures a secure installation
  • Removable 16-gauge aluminum plate allows bottom mounting of wireless antennae, dome cameras, etc.
  • Standard solid front and rear locking and latched doors install with safety chains and lift-off stops to prevent accidental removal
  • Electrical box pre-installed inside the enclosure
  • Standard front and rear adjustable 11-gauge, 10-32 threaded rackrail with numbered rackspace increments
  • Finished in a durable black textured powder coat
  • Two 4-1/2 exhaust fans remove heated air at the top of the enclosure. Passive lower air intakes allow cooler air to be pulled in from the bottom.
  • Rack top includes four integral gland grommeted 4 cable pass-throughs
  • Multiple UHF/VHF antenna knockouts on the bottom of the enclosure
  • Choose the IDF when rackmounting hubs, routers and other equipment overhead in warehouses, retail outlets or any larger, open location.

Specifications

Specification

Rack Units (Size U)12
Thread Type10-32 Tapped
Usable Depth (Inches)21
Door StyleSolid
Weight Capacity150
External Width (Inches)23.52
External Height (Inches)24.125
External Depth (Inches)28.73
Internal Width (Inches)19.00 (EIA Compliant)
ColorTextured Black Powder Coat
MaterialSteel
Country of OriginMade in USA
WarrantyLifetime
CertificationsRoHS, Greenguard, CSA, UL Listed
ManufacturerMiddle Atlantic
ColorBLACK
Multi-compartmentNO
MaterialSTEEL
Nema RatingNO
ModelMIXED USE
Seismic RatingNO
Mounting Width19"
TypeIN-CEILING
Rail StyleTAPPED
Overall DepthGREATER THAN 1’ TO 2’
Overall HeightGREATER THAN 2’ TO 3’
Overall WidthGREATER THAN 1’ TO 2’
Rack Units12U
UNSPSC Code24102001
