Middle Atlantic SAX-18 | AXS Series Rack, 16 1/2" D X 36 3/16" H, 48" Extension Length

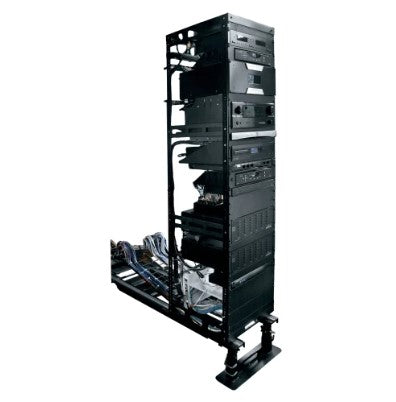

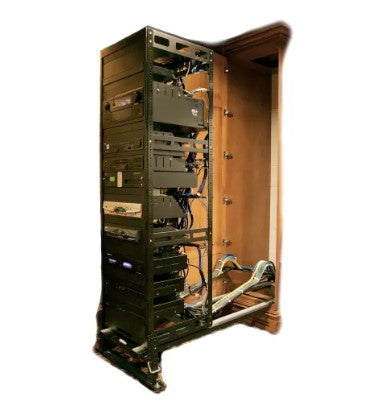

Specify an AXS when installing audio and video equipment flush into a wall or cabinet; ideal for larger systems. The patented pull-out design provides access to rear equipment connections. Entire bays of equipment can be rolled out for service and installation flexibility.
Middle Atlantic - SAX-18 - Features
- Unique interlocking corner joint for exceptional strength and easy assembly
- Service stand raises service tracks to bottom of AXS, allowing it to pull out
- Service tracks include built-in level to save time
- Removable rack frame can be integrated off-site to save time
- Articulating cable carriers provide effective cable management (non-rotating models only)
- Standard fixed front and rear 10-32 threaded rackrail with numbered spaces
- Service tracks and stands sold separately
Specifications
Specifications
Middle Atlantic - SAX-18 - Specifications
| Depth | 16.5 in (41.9 cm) |
|---|---|
| Extension Length | 48 in (121.9 cm) |
| Height | 36.19 in (91.9 cm) |
| Primary Package Weight | 53 lbs (24 kg) |
| Rack Units | 18 RU |
| Usable Depth | 16.5 in (41.9 cm) |
| Usable Height | 31.5 in (80 cm) |
| Weight Capacity | 650 lbs (294.8 kg) |
| Width | 19.25 in (48.9 cm) |
| Finish | Black Powder Coat |
| Rack Rail Type | 10-32 |
| Material | Steel |
| Seismic Rating | No |
| Type | Wall-Mount |
| UNSPSC Code | 24102001 |
| Type | Wall-Mount |
| UNSPSC Code | 24102001 |
