Description
Description

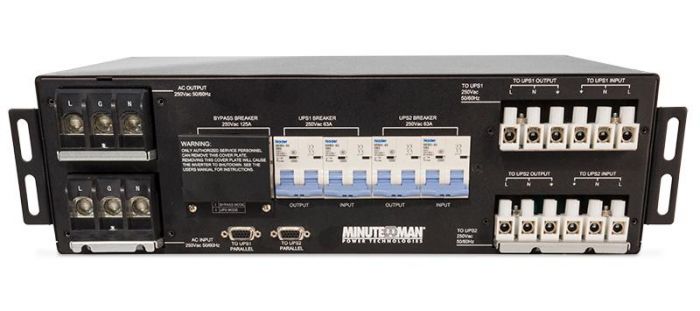

The ED10200RTXLMB Endeavor 10kVA On-line Rack/Tower UPS comes bundled with a Battery Pack and External Maintenance Bypass Switch. It has a 6U rack height (add 3U if rack mounting the MTBS) and has an input/output voltage of 208V.
The Minuteman Endeavor 5-10kVA Series UPS combines transient free pure sine wave output, extended run-time, and redundant or parallel configurations for critical applications. A front panel LCD display provides visual notification of the UPS status, including AC input status, battery status, and UPS fault indication.
Minute Man By Para Systems - ED10200RTXLMB - Features
- Back-up Time:
- Full Load - 6.6 minutes / Half Load - 12 minutes
- True Double-Conversion Online Technology:
- Maximum protection for critical equipment
- Digital Signal Processor (DSP) design:
- Higher reliability through reduced number of UPS components
- Higher Power Factor (0.9pf):
- Increases the real power capacity of each individual model
- Real-Time LCD Status Display:
- See power and unit status, estimated run-time, and more in real time
- Automatic Internal Bypass:
- The UPS will sound an alarm and go to bypass mode when an internal fault, either hardware or battery, is detected
- Independent Battery Bypass (IBB):
- The unit will provide a constant 120/208V output, even with dead or defective batteries when utility power is present
- Smart Fan Control:
- Variable speed fan control maximizes the cooling of the UPS while maintaining optimum efficiency
- Cold Start Function:
- Start UPS even without utility power
- Simultaneous Communication Options:
- RS-232 and optional SNMP communications provide greater flexibility in the management and monitoring of the UPS system
- Platinum Protection Plan:
- Insures properly connected equipment up to $100,000 (Continental U.S. and Canada only)
- ENERGY STAR Certified:
- To maximize energy savings, all models meet EPA's ENERGY STAR efficiency standards
- RoHS 2 Compliant:
- European Union reduction of hazardous substances in electrical equipment: 2011/65/EU
