Minuteman ED8000RTXL5TFMB | Online 7.6Kva/6800W UPS 208V In, 120/208V Output
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description

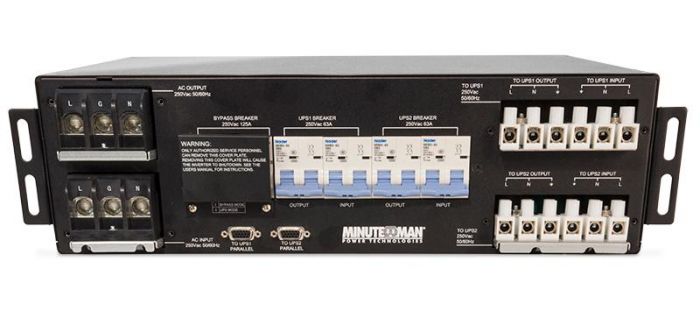

The ED8000RTX5TFMB Endeavor 8kVA On-line Rack/Tower UPS comes bundled with a Battery Pack, 5kVA Isolation Stepdown Transformer. and an External Maintenance Bypass Switch. It has an 8U rack height (add 3U if rack mounting the MTBS) and has an input voltage of 208V and an output voltage of 120/208V.
The Minuteman Endeavor 5-10kVA Series UPS combines transient free pure sine wave output, extended run-time, and redundant or parallel configurations for critical applications. A front panel LCD display provides visual notification of the UPS status, including AC input status, battery status, and UPS fault indication.
Minute Man By Para Systems - ED8000RTXL5TFMB - Features
- Back-up Time:
- Full Load - 8.2 minutes / Half Load - 14.9 minutes
- True Double-Conversion Online Technology:
- Maximum protection for critical equipment
- Digital Signal Processor (DSP) design:
- Higher reliability through reduced number of UPS components
- Higher Power Factor (0.9pf):
- Increases the real power capacity of each individual model
- Real-Time LCD Status Display:
- See power and unit status, estimated run-time, and more in real time
- Automatic Internal Bypass:
- The UPS will sound an alarm and go to bypass mode when an internal fault, either hardware or battery, is detected
- Independent Battery Bypass (IBB):
- The unit will provide a constant 120/208V output, even with dead or defective batteries when utility power is present
- Smart Fan Control:
- Variable speed fan control maximizes the cooling of the UPS while maintaining optimum efficiency
- Cold Start Function:
- Start UPS even without utility power
- Simultaneous Communication Options:
- RS-232 and optional SNMP communications provide greater flexibility in the management and monitoring of the UPS system
- Platinum Protection Plan:
- Insures properly connected equipment up to $100,000 (Continental U.S. and Canada only)
- ENERGY STAR Certified:
- To maximize energy savings, all models meet EPA's ENERGY STAR efficiency standards
- RoHS 2 Compliant:
- European Union reduction of hazardous substances in electrical equipment: 2011/65/EU
- **This UPS model has a L6-30P input plug that requires a locking 250V/30Amp wall receptacle.**
