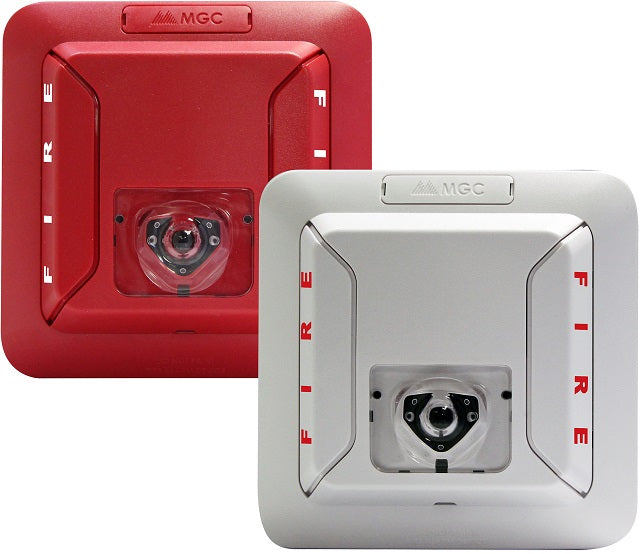

Mircom Technologies FS-400C-WW | Ceiling Mount Led Strobes
Description
Description
MGC’s FS-400C ceiling mount strobes offer a visual solution that deliver exceptional energy efficiency in a compact design. Utilizing advanced LED technology, the FS-400C strobes provide a lower current draw which allows for more devices on a NAC circuit while reducing the number of external power supplies required.
The FS-400C strobes can be field-configured for 15, 15/75, 30, 75, 110 cd. The candela setting is displayed through the front window for easy identification. The device settings are located on the back of the unit to prevent tampering.
Mircom Technologies, Ltd. - FS-400C-WW - Features
- Compact Design
- Advanced LED technology provides superior current draw performance
- Device settings are located on the back of the unit to prevent tampering
- Enhance emergency communication with white models featuring “Alert” labels.
- Can be synchronized using a FACP with the MGC protocol or the MIX-4050 synchronization module.
- Ceiling mount Only
- Includes shorting clip that allows installers to test the wiring before the device is installed
- Mount to MGC BB-400 surface mount back box, single gang, 4-inch square, double gang, octagon and 4-inch junction boxes
- All units include universal mounting plate.
- Red or white finish
- Supports 12 to 22 AWG
- For indoor applications
Specifications
Specifications
Mircom Technologies, Ltd. - FS-400C-WW - Specifications
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
|---|---|
| Humidity range | 0% to 93% |
| Strobe flash rate | 1 Hz |
| Nominal Voltage | Regulated 24 VDC / 24 VFWR |
| Operating Voltage Range (RMS) | 16 to 33 |
| Input terminal wire gauge | 22 AWG to 12 AWG |
| Installation environment | For indoor use only |
