Description
Description

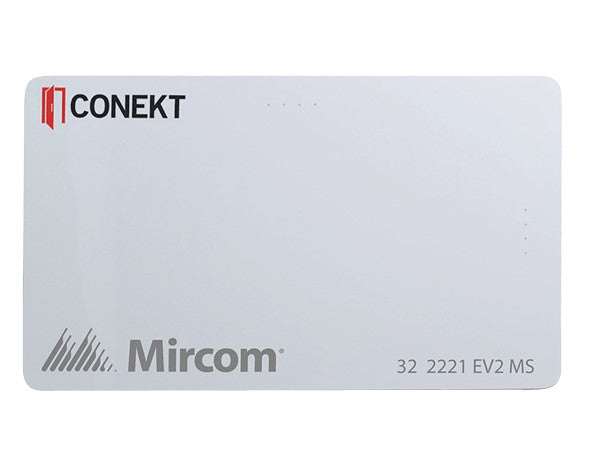

Mircom’s TX3-CSM-2P comprises of mobileready contactless smartcard access control ID solution. Based upon the proven LEGIC contactless digital radio frequency identification (RFID) platform, Our readers interface with a wide range of electronic access control systems by complying with the legacy Wiegand. In addition to supporting mobile access credentials—using the Bluetooth Low Energy (BLE) feature of select smartphones—TX3 includes a range of traditional physical access credentials, such as ISO cards, and key tags. TX3’s range of credentials support 26-Bit Wiegand format, as well as custom Wiegand, ABA Track II magnetic stripe and serial data formats. They employ value-add features, such as MAXSecure™, and advanced data protection, such as AES encryption. TX3 credentials can be ordered programmed to various formats in exact number sequence required.
Mircom Technologies, Ltd. - TX3-CSM-2P - Features
- High-Security Encryption Technology
- Unique Security Feature
- ISO 14443-A Protocol
- Vertical & Horizontal Indicators / Built-in Eyelet
- Contactless Up to 2.25 in (57 mm)
Specifications
Specifications
Mircom Technologies, Ltd. - TX3-CSM-2P - Specifications
| Technology | Smartcard |
|---|---|
| Frequency | Excitation (13.56 MHz) |
| Type | ISO-style card |
| Color | Glossy white |
| Slot Punch | Vertical and horizontal indicators |
| Dimensions | 2.1" W × 3.4" H × 0.03" D |
| Weight | 0.23 oz (6.4 g) |
| Operating Temperature | –31° F to 122° F |
| Humidity | 0–95% non-condensing |
| TX3-CSM-2P.pdf | chrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/https://mircom.com/wp-content/uploads/product_documents/CAT-6571_TX3-CSM-2P-TX3-CSK-2_Smartcard_Credentials.pdf |
| TX3-CSM-2P.jpg | - |
