Mircom Technologies, Ltd. TX3-CSR-35 | Comprises Contactless Smartc...
Description
Description

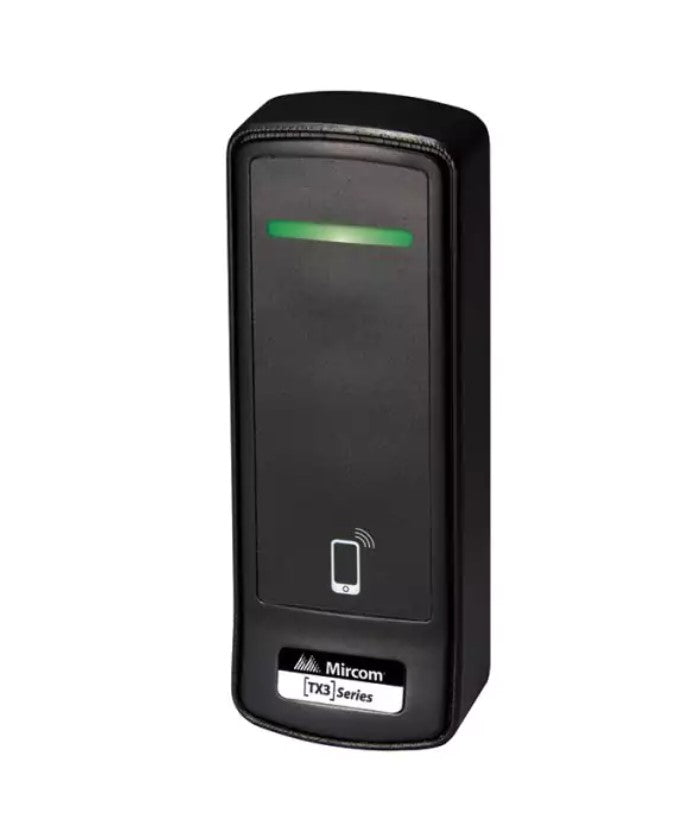

Mircom’s TX3-CSR-35 comprises contactless smartcard reader solution with mobile access support. Based upon the proven LEGIC contactless digital radio frequency identification (RFID) platform, our readers interface with a wide range of electronic access control systems by complying with either the legacy Wiegand and ABA Track II magnetic stripe formats. They offer value-add features such as MAXSecure™ and ValidID™, and support both sector and card serial number (CSN) reads. In addition to traditional contactless smartcard access credentials, such as clamshell cards and key tags, the platform also offers the option of mobile access credentials loaded on Bluetooth Low Energy (BLE)-enabled smartphones. This allows the smartphone to function as a contactless electronic access control credential. Mircom’s access credentials, both traditional and mobile, can be ordered programmed to various formats in exact number sequence required.
Mircom Technologies, Ltd. - TX3-CSR-35 - Features
- Bluetooth Low Energy (BLE)
- Optimized for mifare Desfire EV1 & EV2
- Max Secure
- Single Reader for Mullion or Wall-Switch Mount
Specifications
Specifications
Mircom Technologies, Ltd. - TX3-CSR-35 - Specifications
| Technology | Contactless smartcard and Bluetooth Low Energy (BLE) |
|---|---|
| Frequency | 13.56 MHz (contactless smartcard) and 2.4 GHz Bluetooth Low Energy (BLE) |
| Mounting | A single reader for metal door and window frames, single-gang wall boxes, and flat surfaces |
| Dimensions | Mullion: 1.7" W × 4.7" H × 1.2" D (43 mm × 119 mm × 30 mm) |
| IP Code | IP67 |
| Operating Temperature | –40° F to 149° F (–40° C to +65° C) |
| LED | Five-state standard (blue, red, green, amber, and off) |
| TX3-CSR-35.pdf | chrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/https://mircom.com/wp-content/uploads/product_documents/CAT-6570_TX3-CSR-35_Smartcard_Reader.pdf |
| TX3-CSR-35.jpg | - |
