Mircom Technologies, Ltd. TX3-ER-8-B | Elevator Restriction Unit al...
Description
Description

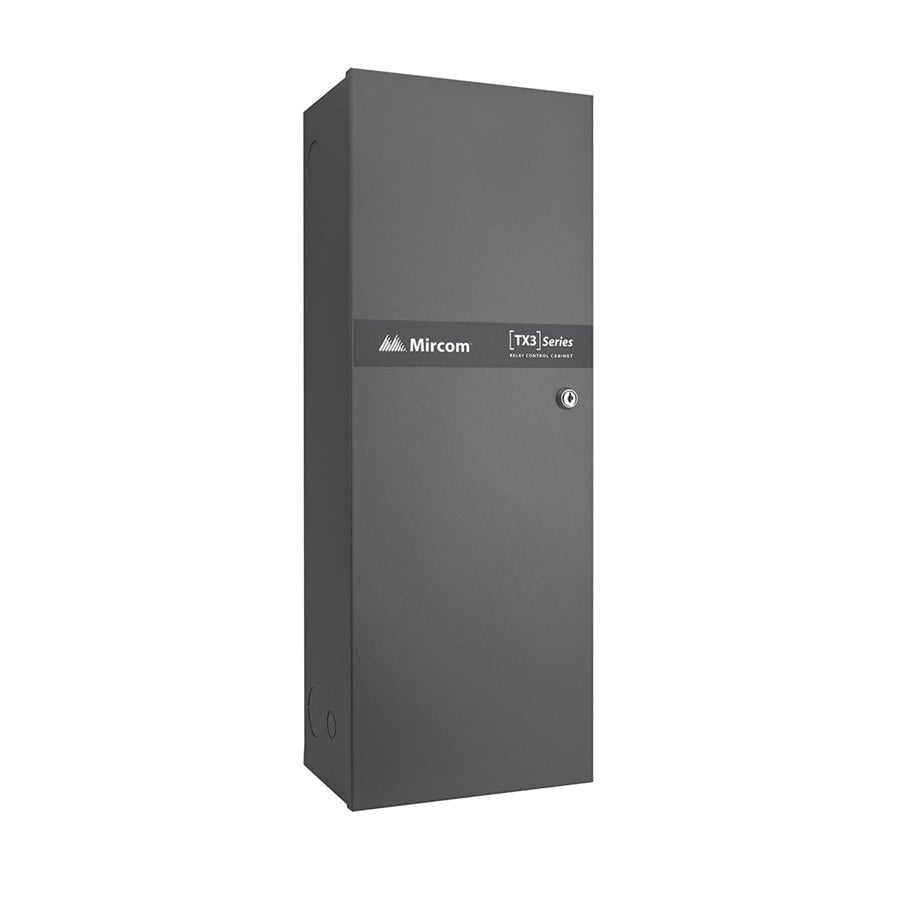

The TX3-ER-8-B Elevator Restriction unit is built to restrict tenant/visitor floor access for any type of building. The Elevator Restriction works with TX3 series Voice Entry and Access Control systems. The TX3-ER-8-B Elevator Restriction unit comes complete with a cabinet, the Main Elevator Restriction controller board, the Elevator backplane and one 24 VDC (TX3-PS24-5A) transformer. The TX3-ER-8-B supports up to eight 3012E Elevator Restriction Relay Cards for a total of 96 elevator restriction relays. The fully customizable floor group allows users to activate all 96 relays simultaneously. The Elevator Restriction unit supports up to 16 elevator cabs in one building. The TX3-ER-8-B Elevator Restriction Unit provides time dependent relay contacts which can be used for either elevator control or video control.
Mircom Technologies, Ltd. - TX3-ER-8-B - Features
- Restrict visitors/residents building floor access
- Fully customizable Floor Groups to provide users access to single or a group of floors
- Custom scheduling for a single or a group of relays
- Manual controls for high traffic buildings (coming soon)
- Real-time elevator relay status (coming soon)
Specifications
Specifications
Mircom Technologies, Ltd. - TX3-ER-8-B - Specifications
| Dimensions | 27"H x 10 1/8"W x 6 3/8"D |
|---|---|
| TX3-ER-8-B.pdf | chrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/https://mircom.com/wp-content/uploads/product_documents/CAT-6532_TX3-ER-8-B_Elevator_Restriction_Unit.pdf |
| TX3-ER-8-B-Manual.pdf | chrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/https://mircom.com/wp-content/uploads/product_documents/LT-6724-256-TX3-Supplement.pdf |
| TX3-ER-8-B.jpg | - |
