Brand: Mircom Technologies Ltd. | SKU: 10182813

Mircom Technologies, Ltd. TX3-TOUCH-S15-D | Touch Screen Surface Mount Telephone Access System

Regular price $9,382.46
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

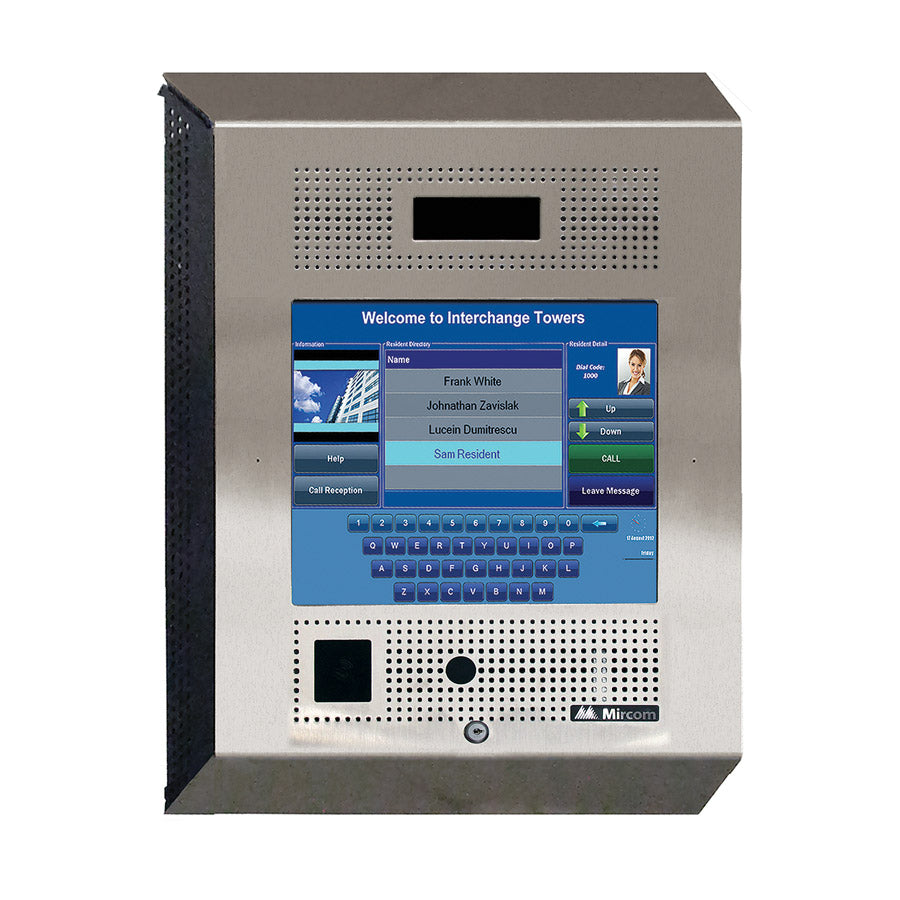

Mircom Technologies, Ltd. TX3-TOUCH-S15-D | Touch Screen Surface Mount Telephone Access System

Mircom’s TX3-Touch Series Telephone Access Systems are the most advanced entrance automation and security systems available on the market today. The TX3-Touch Series flush mount unit is designed to replace old style technology voice entry panels with a prestigious modern day greeting display to visitors to multi-residential buildings such as apartments, condominiums, and office buildings. The TX3-Touch Series allows building occupants to communicate with visitors and grant or deny entry into a complex. The TX3-Touch unit can be customized to display various layouts, videos and groups as well as promotional or site specific information. In addition the TX3-Touch Series comes with a HD web camera with provisions for a built-in HD IP camera, postal lock, and a single door controller module. The TX3-Touch Series flush mount unit is constructed of a heavy gauge stainless steel and is designed for indoor applications. The TX3-Touch Series user interface is built on top of the Intel Atom architecture running a reliable and proven windows-based operating system to offer the most feature rich system on the market. Communication is provided via ADC, NSL or SIP for telephone interconnectivity. Field proven, Mircom’s TX3 is sold worldwide providing years of reliable service in buildings around the world for over 25 years.

Mircom Technologies, Ltd. - TX3-TOUCH-S15-D - Features

  • 15" color anti-glare, industrial grade touch screen display that is viewable in direct sunlight
  • Built-in TCP/IP capability for remote programming or maintenance
  • Constructed of heavy gauge stainless steel to withstand years of abuse
  • Built-in HD web camera and proximity card reader for easy integration to other technology platforms
  • Provision to add optional HD IP camera, postal lock and a single door controller module
  • Multiple panels can be connected on a shared database for up to 63 nodes using RS-485 or unlimited using TCP/IP
  • Four fully configurable themes (color & font), 4 preset themes, and 4 screen layout templates
  • Includes four built-in keyboard layouts (Full QWERTY, Full QWERTY + Num pad, Simple, or Accessible)
  • Voice or video based help menu for ease of use
  • Built-in e-mail resident feature (requires email service provider)
  • Supports Auto Dialer (ADC/PSTN), No Phone Bill (NSL), and Voice over IP (SIP)
  • Elevator restriction capability
  • Programming via built-in USB, TCP/IP, modem or locally using the configuration on screen application

Specifications

Mircom Technologies, Ltd. - TX3-TOUCH-S15-D - Specifications

Dimensions23 13/16" H x 17 1/2" W x 4" D (604mm x 445mm x 101mm)
ComputerIntel Atom GENEBT05
Hard DriveReliable Compact Flash comes standard with 32GB.
Power24V DC/156 W – Switching Power Supply included. (TX3-PS24-5A)
SoftwareWindows 7 Embedded with Microsoft SQL Server Express Database for handling a large number of resident information
Operating Temperature0-50ºC or 32º-120ºF
ApprovalsIndustry Canada
TX3-TOUCH-S15-D.pdfchrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/https://mircom.com/wp-content/uploads/product_documents/CAT-6566_TX3-TOUCH-S15-D.pdf
TX3-TOUCH-S15-D.jpg-
