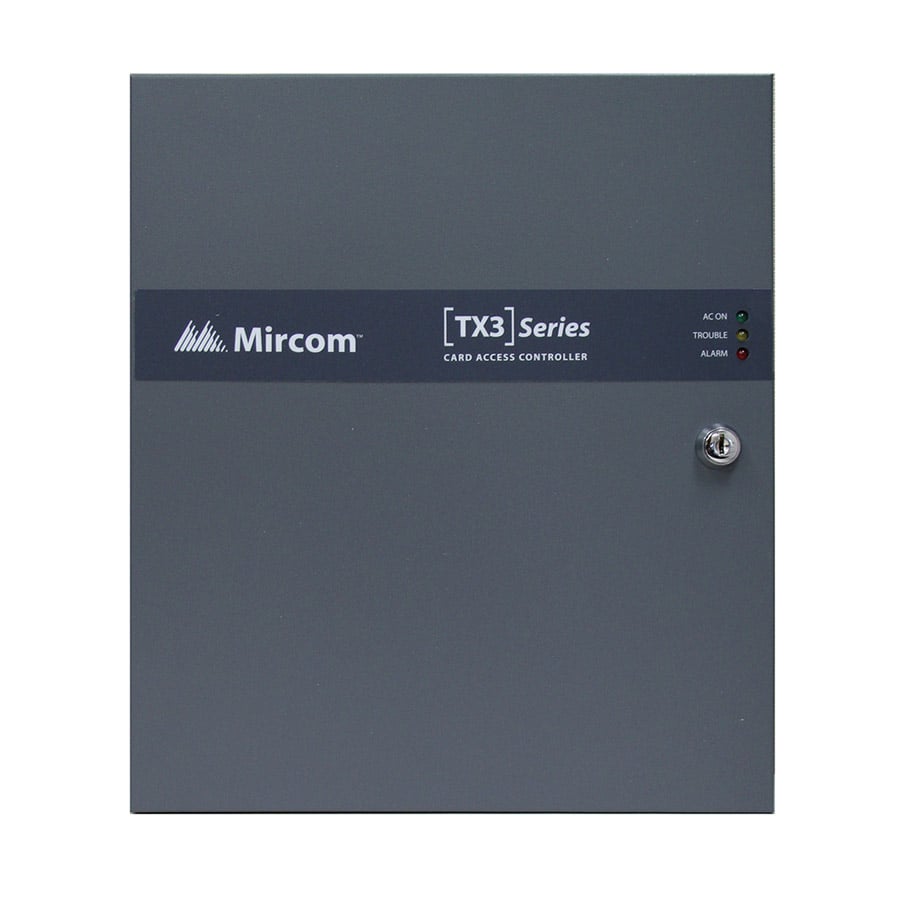

Mircom Technologies TX3-CX-2-A | Two Door Card Access System Kit
Description
Description
Mircom’s TX3-CX-2K-A is a powerful hybrid IP and RS-485 networked two door controller that will manage up to 126 doors using the RS-485 network. Use TCP/IP and the system is virtually unlimited. Simply add a TX3-IP module to the panel for TCP/IP networks. The TX3-CX-2K-A Kit comes complete with one TX3-CX controller, two TX3-P300-HA readers, a configurator software on a flash memory stick and a USB cable for programming. The TX3-CX-2-A controller has a unique feature of being compatible with the entire family of TX3 platform solutions from voice entry, elevator restriction and wireless Aperio locksets. Unlike other platforms, the TX3 will meet the basic job requirements and accomodate other elements of an intelligent building as the need arises.
Mircom Technologies - TX3-CX-2-A - Features
- A hybrid architecture that combines the best of TCP/IP and RS-485. All panels can be networked via RS-485 or TCP/IP.
- 8 supervised inputs for a wide selection of monitoring points to be shared between the two card readers
- 8 programmable outputs; 6 are Form C contacts (normally open/normally closed), two provide 12 VDC power for up to 1 ampere of current combined
- Supports all credential formats such as clamshell cards, graphic cards, key tags and wafers (ordered separately)
- Optional vehicular control using dual technology wireless transmitters that can have a built-in proximity coil (wafer)
- Unified database for TX3 voice entry and card access systems reduces administration time and support
- A variety of options to remotely manage the TX3 access panel to fit the site requirements. A modem, a TCP/IP module or use a local USB extender to a PC
Specifications
Specifications
Documents and Downloads
Documents and Downloads
