Description
Description

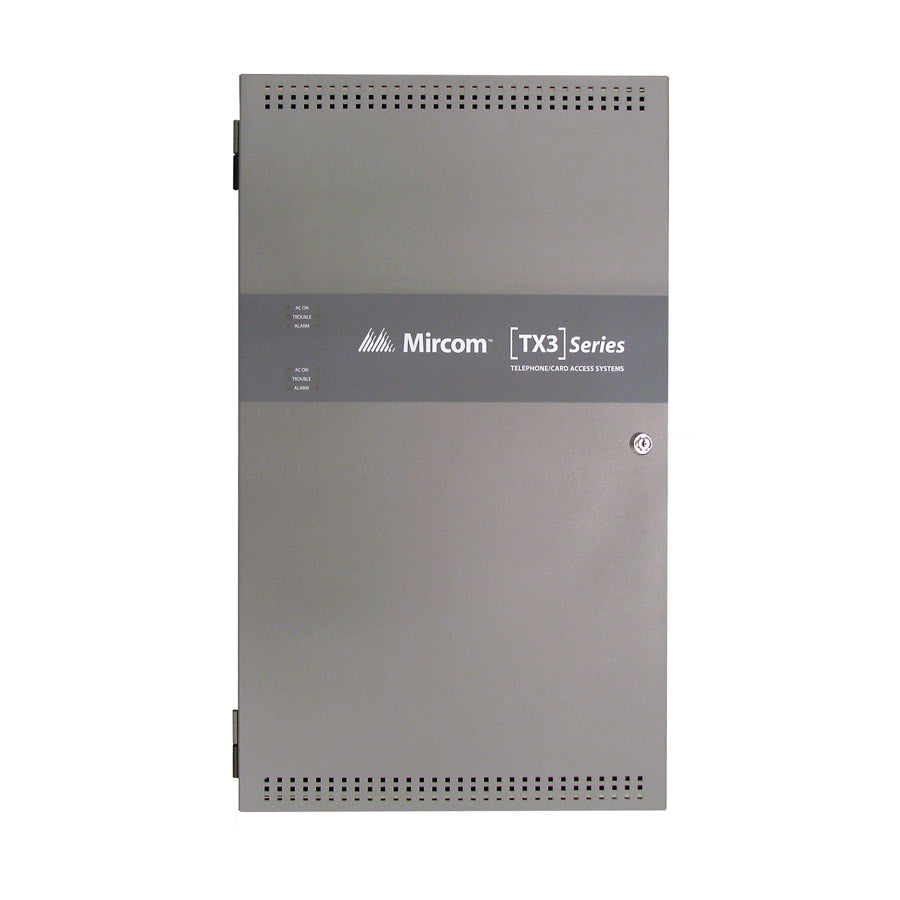

The TX3-CX-4-A controller conveniently houses two 2-door controller boards providing a 4-door system. The chassis can hold up to four 2-door controller boards in total, providing the provision to add two additional 2-door controller boards to extend the number of doors. The system comes with an IP module, which can allow property managers/programmers to program the system remotely. The system can also be connected with additional control panels using RS-485 (up to 63 boards). The chassis can house up to four batteries either 4 or 6 AH. 2 transformers are included for each control panel board. TX3 Series Access Control System can integrate with all TX3 series control panels (Keypad Voice Entry, Touch Voice Entry, Elevator Restriction), making property managers life simple and easy.
Mircom Technologies - TX3-CX-4-A - Features
- The Wiegand inputs support multiple different reader types such as Proximity, MIFARE, Biometrics, iClass, and BLE (ordered separately)
- Supports all credential formats such as clamshell cards, graphic cards, key tags and wafers (ordered separately)
- Optional vehicular control using dual technology wireless transmitters that can have a built-in proximity coil (wafer)
- Same job file for both TX3 voice entry and card access systems reduces administration time and support
- A variety of options to remotely manage the TX3 access panel to fit the site requirements. Use a modem, a TCP/IP module or a local USB extender to a PC
- Controls up to eight doors from one enclosure simplifying conduit connections and cabling
- Cost saving construction of multiple TX3 Series
- RB-MD-1093 two door controller boards
Specifications
Specifications
Mircom Technologies - TX3-CX-4-A - Specifications
| UNSPSC Code | 43211700 |
|---|
