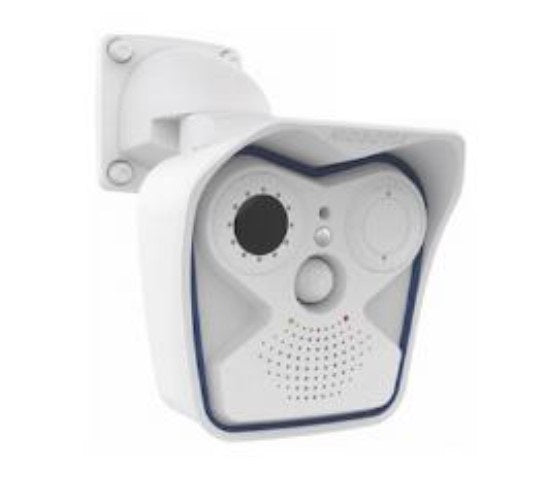

Mobotix MX-M16TB-R079 | IP Camera, Thermographic Tr with Germanium Lens, Horizontal/Vertical Image Angle
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mobotix MX-M16TB-R079 | IP Camera, Thermographic Tr with Germanium ...
Description
Description
IP thermographic camera TR with Germanium Lens: B079 equivalent, horizontal/vertical image angle 45°/35°, ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG, Thermal radiometry (TR): calibrated thermal sensor for temperature events from -40 to 550°C (-40 to 1022°F), NETD typ. 50 mK, < 79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second, 336 x 252 pixels (can be scaled up to 6MP), pixel pitch 0,017mm (17µm), Optional optical 6MP sensor module (to be ordered individually), IP66, -40 to 60°C (-40 to 140°F), Internal DVR: 4 GB microSD, System components: speaker and microphone (inside housing), PIR sensor, temperature sensor, MxActivitySensor, shock detector, VarioFlex wall/ceiling mount (can be used with additional pole mount: MX-MH-SecureFlex-ESWS), ethernet patch cable 0.5 m/1.65 ft, Interfaces: Ethernet 10/100 (RJ45), MxBus, USB; IO and RS232 via additional Interface Box
Specifications
Specifications
Mobotix - MX-M16TB-R079 - Specifications
| Product Designation | M16B Thermal |
|---|---|
| Mx Ordercode | Mx-M16TB-R079 |
| Camera Type | box camera |
| Dual Camera | Yes |
| Manual Lens Alignment | No |
| Microphone | Yes |
| Speaker | Yes |
| Application Area | Indoor |
| Outdoor | MxBUS |
| Yes | Housing Color |
| white | Ambient Temperature (°C) |
| -40...+60 °C (-40 ... 140 °F; Operational temperature) | Cold start at -30 °C (-22°F) |
| IP Class | IP66 |
| IK Class | IK08 |
| Video Phone | Yes |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (Client or Server), NTP (Client and Server), SIP (Client and Server) G.711 (PCMA and PCMU) and G.722 |
| Ethernet | MxRJ45 |
| Environmental Sensors | temperature measurement (only Thermal Radiometry) -40 to 550°C, temperature sensor, noise sensor, PIR (passive infrared sensor), shock sensor (with later SW update), other sensors/IO via MxMessageSystem |
| Overvoltage Protection | via MX-Overvoltage-Protection-Box |
| Mounting Options | Wall |
| Pole | Ceiling |
| CPU | i.MX 6 Dual Core incl. GPU |
| RAM | 1GB |
| Image Angle horizontal | 45° |
| Image Angle vertical | 35° |
| Max. Frame Rate | 9fps |
| Max. Image Size | 6MP (3072x2048, Thermal: scalable from 336 x 252) |
