Brand: Neutrik
|
SKU:
NC3FD-LX

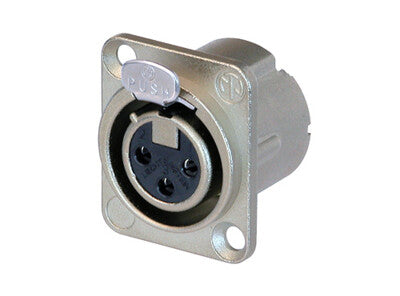

Neutrik NC3FD-LX | Receptacle DLX Series 3 Pin Female, Solder - Nickel/Silver
Regular price
$4.94
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Neutrik NC3FD-LX | Receptacle DLX Series 3 Pin Female, Solder - Nic...
Regular price
$4.94
Unit price
Description
Description
Neutrik NC3FD-LX | Receptacle DLX Series 3 Pin Female, Solder - Nickel/Silver
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
Neutrik - NC3FD-LX - Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Specifications
Specifications
Neutrik - NC3FD-LX - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Locking Wiring Devices
- Locking Receptacles
Neutrik - NC3FD-LX - Specifications
| Manufacturer Name | Neutrik |
|---|---|
| Manufacturer Part Number | NC3FD-LX |
| Item Description | Receptacle DLX Series 3 Pin Female, Solder - Nickel/Silver |
| Color | Silver |
| Material | Zinc Diecast |
| Mounting Style | Panel Mount |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Phase | 1 |
| Product Type | Receptacle |
| Temperature Range | -30 To +80 |
| Wire Size - Maximum | 14 |
