Neutrik NC3FXX | Coaxial Connector, Female Connector, 14 AWG, < ...
Regular price
$4.74
Unit price
Description
Description

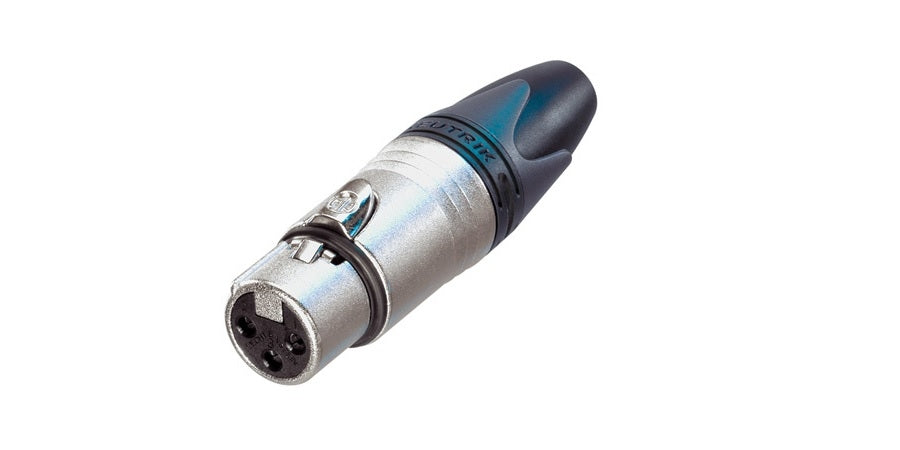

Neutrik NC3FXX | Coaxial Connector, Female Connector, 14 AWG, < 50 V, 16 A
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X Series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Neutrik - NC3FXX - Features
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
Specifications
Specifications
Neutrik - NC3FXX - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial Hardware
- Coaxial Connectors
Neutrik - NC3FXX - Specifications
| Manufacturer Name | Neutrik |
|---|---|
| Manufacturer Part Number | NC3FXX |
| Item Description | Coaxial Connector, Female Connector, 14 AWG, < 50 V, 16 A |
| Amperage | 16 A |
| Body Finish | Nickel-Plated |
| Cable Insulation Od | 3.5 To 8.0Mm |
| Cable Size | 14 Awg |
| Contact Material | Bronze |
| Contact Plating | Silver Plated |
| Dimensions | Lxdia: 2.835 X 20.4Mm |
| Finish | Nickel-Plated |
| Insulation Resistance | ≫10 Gî© |
| Length | 2.835 In. |
| Material | Polyurethane Boot, Polyamide Insert, Die-Cast Zinc Shell |
| Product Type | 3-Pole Straight Cable Connector |
| Resistance | ? 3 M? |
| Temperature Rating | -30 To +80 C |
| Termination | Solder |
| Voltage | ≪50 V |
| Width | 0.8 In. |
