Brand: Neutrik
|
SKU:
NC3MRX-BAG

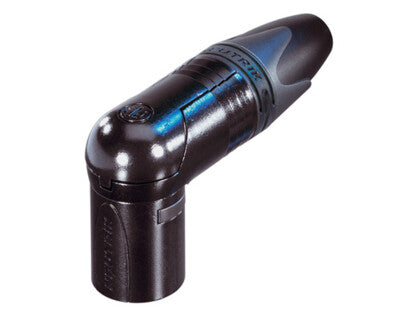

Neutrik NC3MRX-BAG | Cable End RX Series 3 Pin Male Right Angle - Black/Silver
Regular price
$12.79
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Neutrik NC3MRX-BAG | Cable End RX Series 3 Pin Male Right Angle - B...
Regular price
$12.79
Unit price
Description
Description
Neutrik NC3MRX-BAG | Cable End RX Series 3 Pin Male Right Angle - Black/Silver
The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Neutrik - NC3MRX-BAG - Features
- Extra slim right-angle connector
- 7 selectable cable outlet positions
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Coloured rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
Specifications
Specifications
Neutrik - NC3MRX-BAG - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Other Electrical Connectors
Neutrik - NC3MRX-BAG - Specifications
| Manufacturer Name | Neutrik |
|---|---|
| Manufacturer Part Number | NC3MRX-BAG |
| Item Description | Cable End RX Series 3 Pin Male Right Angle - Black/Silver |
| Amperage | 16 |
| Cable Outside Diameter Maximum | 8 |
| Cable Outside Diameter Minimum | 3.5 |
| Connector Type | Xlr |
| Fire Rating | Ul 94 V-0 |
| Gender | Male |
| Material | Die Cast Zinc |
| Number Of Poles | 3 |
| Operating Temperature | -30 To +80 |
| Product Type | Cable Connector |
| Resistance | 2 |
| Special Rating | Ip 40; Iec 68-2-20; Ul |
| Voltage | 50 |
| Wire Size | 14 |
