Brand: Neutrik
|
SKU:
NC5FXX

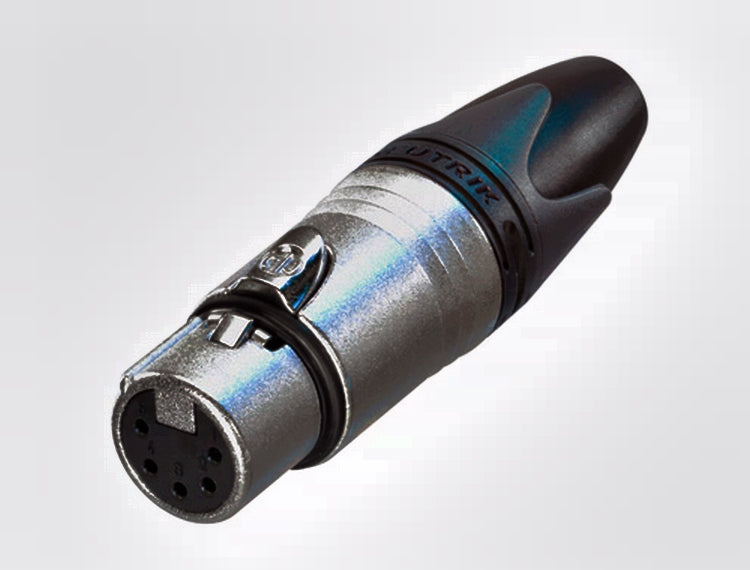

Neutrik NC5FXX | XLR Cable Connector, OD 3.5 to 8 mm, Nickel Silver, 18 AWG, Brass Conductor
Regular price
$10.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Neutrik NC5FXX | XLR Cable Connector, OD 3.5 to 8 mm, Nickel Silver...
Regular price
$10.27
Unit price
Description
Description
Neutrik NC5FXX | XLR Cable Connector, OD 3.5 to 8 mm, Nickel Silver, 18 AWG, Brass Conductor
5 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Neutrik - NC5FXX - Features
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
Specifications
Specifications
Neutrik - NC5FXX - Product Categories
- Audio, Visual and Telephony
- Audio and Visual
- AV Cable and Connectors
- Other AV Cable and Connectors
Neutrik - NC5FXX - Specifications
| Manufacturer Name | Neutrik |
|---|---|
| Manufacturer Part Number | NC5FXX |
| Item Description | XLR Cable Connector, OD 3.5 to 8 mm, Nickel Silver, 18 AWG, Brass Conductor |
| Amperage Rating | 7.5 A |
| Amperage | 7.5 |
| Cable Outside Diameter | 3.5 To 8.0 |
| Color | Nickel Silver |
| Conductor Material | Brass |
| Conductor Size | 18 Awg |
| Connection Type | Xlr |
| Connector Type | Female |
| Dimensions | Od: 3.5 To 8 Mm |
| Gender | Female |
| Outside Diameter | 3.5 To 8Mm |
| Product Type | Xlr Cable Connector |
| Temperature Range | -30 To +80 |
| Temperature Rating | -30 To 80 C |
| Voltage Rating | ≪50 V |
| Voltage | ≪50 V |
